Superduty Dana 60 Heim Joint Steering Kit with 7/8 Heims
B4WK0099
Regular price
$387.19 USD
Regular price
Sale price
$387.19 USD
Unit price
per

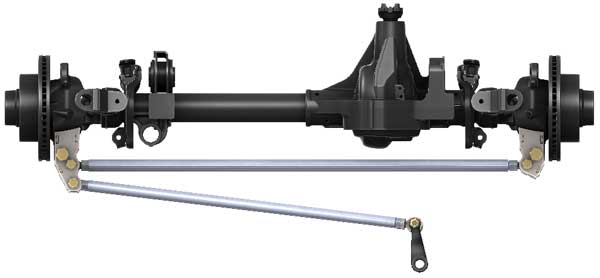

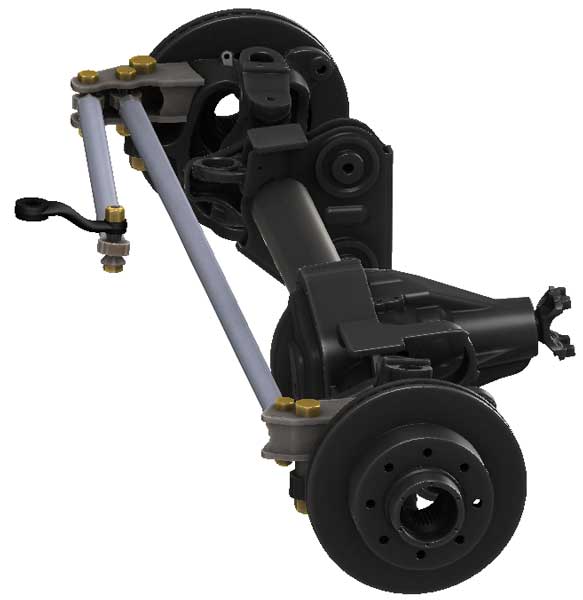

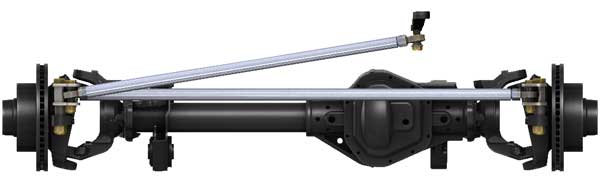

Barnes 4WD heavy duty 7/8” heim joint steering kit for the Superduty Dana 60 has arrived. Beef up your Superduty steering with our 3-piece heim joints. This kit was designed to work with our Superduty Dana 60 Weld on High Steer Arms. This kit requires cutting the DOM tubing to length and welding in the threaded tube inserts to match your particular application. This kit will run a 3/4” bolt at all mounting locations. With some combinations of differential covers and weld on steer arms, the tie rod may need to be bent to fit your application.

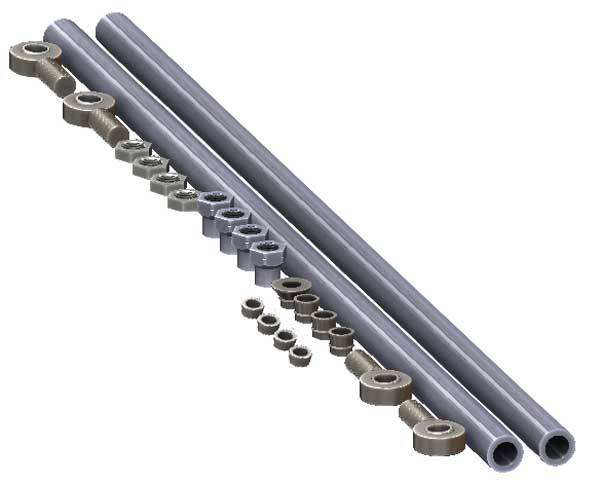

Kit includes:

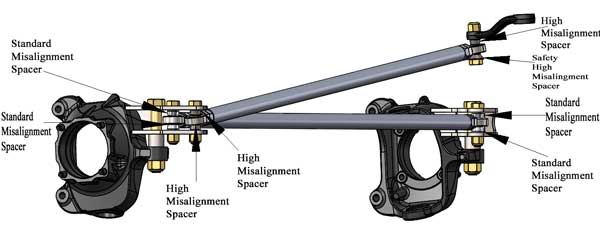

- One 7/8 TO 3/4 SAFETY HIGH MISALIGNMENT SPACER ZINC PLATED STEEL
- Three 7/8 TO 3/4 HIGH MISALIGNMENT SPACER ZINC PLATED STEEL
- Two 7/8-14 HEX LEFT HAND THREAD TUBE INSERT FOR 1 INCH ID TUBE
- Two 7/8-14 HEX RIGHT HAND THREAD TUBE INSERT FOR 1 INCH ID TUBE
- Two 7/8 - 14 JAM NUT LEFT HAND THREAD
- Two 7/8 - 14 JAM NUT RIGHT HAND THREAD
- One 7/8"-7/8" 3-PIECE PRECISION HEAT TREATED CHROMOLY TEFLON AND KEVLAR LINED LEFT HAND HEIM
- One 7/8"-7/8" 3-PIECE PRECISION HEAT TREATED CHROMOLY TEFLON AND KEVLAR LINED RIGHT HAND HEIM
- One 7/8"- 3/4" 3-PIECE PRECISION HEAT TREATED CHROMOLY TEFLON AND KEVLAR LINED LEFT HAND HEIM
- One 7/8"- 3/4" 3-PIECE PRECISION HEAT TREATED CHROMOLY TEFLON AND KEVLAR LINED RIGHT HAND HEIM
- Four 3/4 ID MISALIGNMENT SPACER ZINC PLATED STEEL
- One Piece DOM TUBING 1.5 OD X 1 ID (1/4 WALL) 54 INCHES LONG
- One Stick DOM TUBING 1.50 OD 1 ID (1/4 WALL) 48 INCHES LONG
