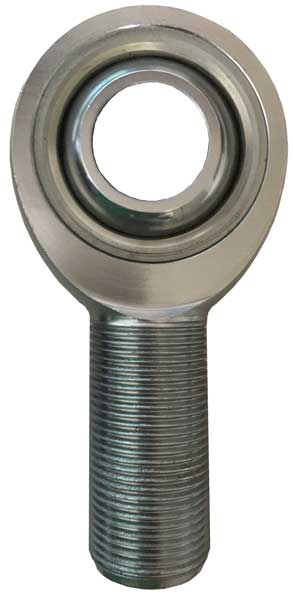

  • JMX14T 3-Piece Heim

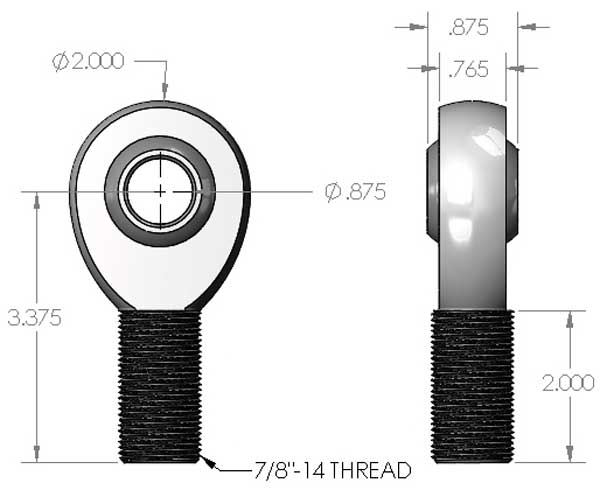

  • JMX14T 3-Piece Heim Dimension
1 of 2

Barnes 4WD

7/8"-7/8" 3-Piece Precision Heat Treated Chromoly Teflon and Kevlar Lined Right Hand Heim

JMX14T
Regular price $27.60 USD
Regular price Sale price $27.60 USD
Sale Sold out
If you are looking for a long lasting precision chromoly rod end, this is the one for you.  This heim joint features a tough PTFE (Teflon) liner that is reinforced with Kevlar fibers for increased longevity over nylon lined heim joints.

Threaded Shank
  •   7/8-14
Bore
  • 7/8"
Static Radial Load
  • 45,051lbs.
Ball
  • 52100 Bearing Steel
  • Precision Ground
  • Hard Chrome Plated
Race
  • 4130 Chromoly Steel
  • Heat Treated
  • PTF Lined
  • Zinc Plated
Body
  • 4130 Chromoly Steel
  • Heat Treated
  • Silver Zinc Plated
