Barnes 4WD

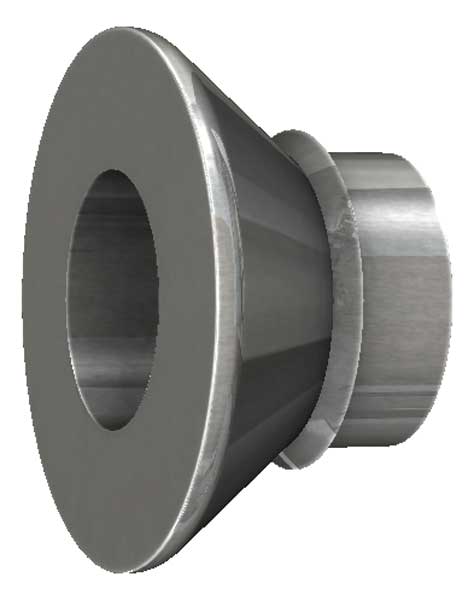

7/8 to 3/4 Safety High Misalignment Spacer Zinc Plated Steel 2 Inch Mounting Width

Regular price $4.60 USD
Regular price Sale price $4.60 USD
Sale Sold out
Add To Wishlist

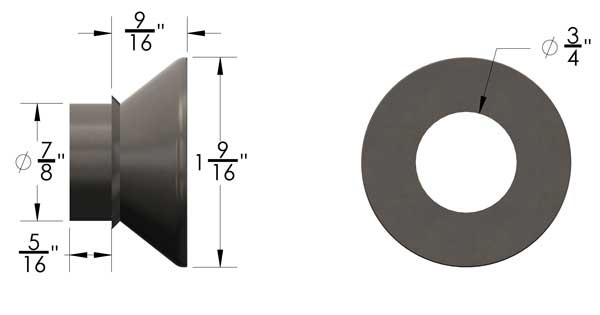

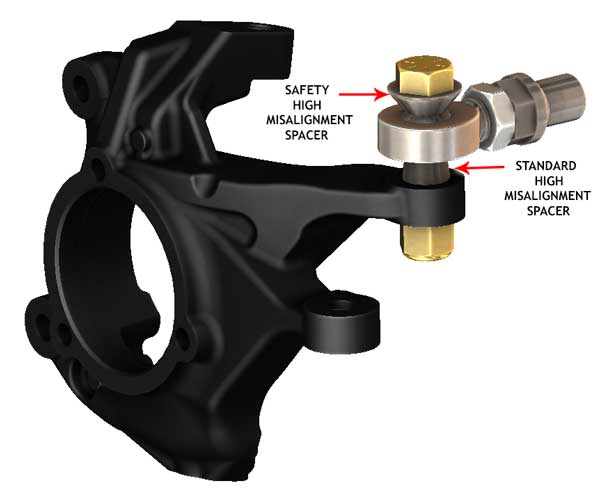

Our safety high misalignment spacer is designed for applications with a heim joint mounted in single shear, it is perfect for steering applications.  In the event that a rod end fails and pushes the ball out of the housing, this misalignment spacer has a built in larger outer diameter that will capture the housing of the joint to prevent complete failure.  This is a very important component to have on steering or other single shear applications to prevent total loss of the mechanical connection.  This spacer is designed to go in a heim joint with a 7/8" bore and will step the bore down to 3/4".  Mounting width when installed as a pair, or with one of our standard high misalignment spacers is 2".  Zinc plated for corrosion resistance, and sold individually.
