Enduro Joint 3 Link Suspension Kit
B4WK1115
Regular price
$733.66 USD
Regular price
Sale price
$733.66 USD
Unit price
per

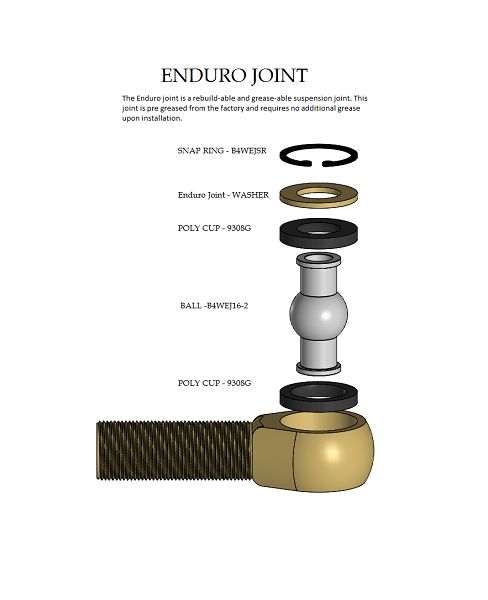

This is a complete, high quality 3 link suspension kit with all the parts you need to install a three link suspension on your rig at home. All the parts in our three link kit are made to stand up to the abuse that Rock Crawlers and Trail Rigs see and then some. This kit includes our Enduro joints, these are our high quality suspension joints that are greasable and rebuildable. What this means for you is increased joint life and if you ever wear them out you can simply rebuild them, this is much more cost effective than having to replace an entire heim joint. These are the preferred joint for a dual purpose vehicle that is going to see street and trail use.
Read our blog for: 3 Link Installation Tips

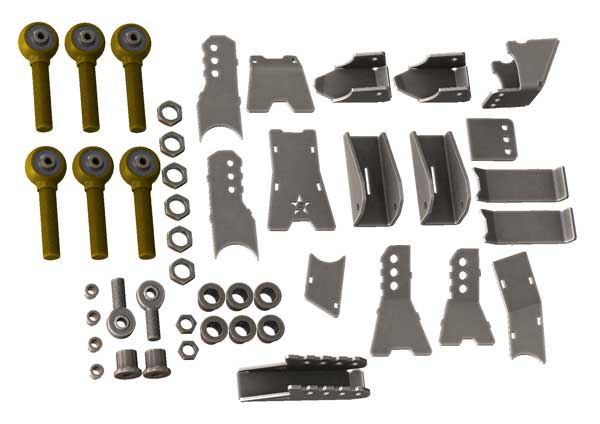

The kit includes:
- 2 Axle Link Mounts 10 Deg Standard
- 2 Frame Link Mounts
- 1 Adjustable Inner Frame Link Mount 0 Deg
- 1 Link Tower
- 1 Outside Frame Panhard / Trackbar Mounting Bracket
- 1 Offset Axle Panhard Bracket
- 1 Chromoly 3/4 - 16 X 3/4" Heim RH
- 1 Chromoly 3/4 - 16 X 3/4" Heim LH
- 4 High Misalignment Spacers - 3/4" to 5/8"
- 1 3/4" - 16 Jam Nut RH
- 1 3/4" - 16 Jam Nut LH
- 1 Tube Insert (3/4-16) 1" ID Tube RH
- 1 Tube Insert (3/4-16) 1" ID Tube LH
- 3 Enduro Joint 1 1/4"- 12 RH x 9/16"
- 3 Enduro Joint 1 1/4"- 12 LH x 9/16"
- 3 1-1/4" - 12 Jam Nut LH
- 3 1-1/4" - 12 Jam Nut RH
- 2 Heavy Wall Tube Insert (1-1/4-12) 1 1/2" ID Tube LH
- 2 Heavy Wall Tube Insert (1-1/4-12) 1 1/2" ID Tube RH
- 1 Standard Tube Insert (1-1/4-12) 1 1/2" ID Tube LH
- 1 Standard Tube Insert (1-1/4-12) 1 1/2" ID Tube RH
This is great for the do it yourself fabricators looking do their own 3 link system.
