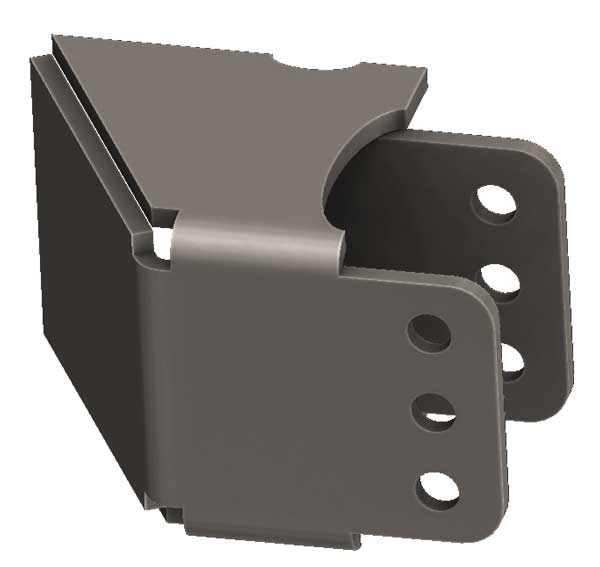

• Adjustable Inner Frame Link Mount Bracket

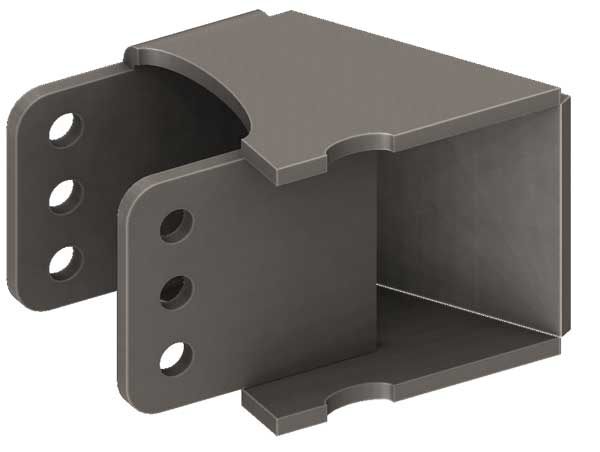

  • Adjustable Link Mount

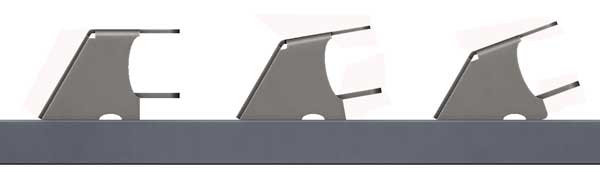

  • Adjustable Link Bracket Degrees

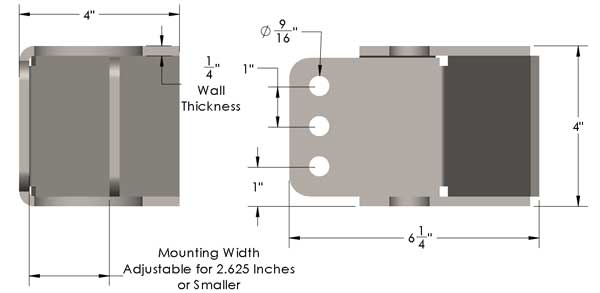

  • Adjustable Frame Bracket Dimensions

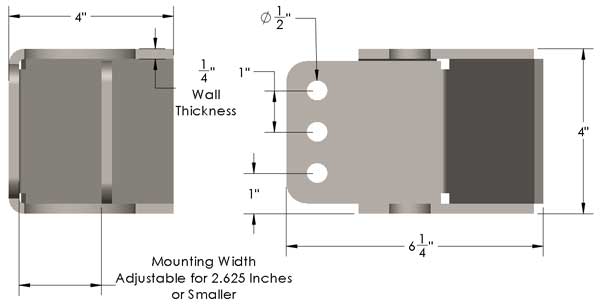

  • Inner Frame Mount Dimensions
1 5

Barnes 4WD

Adjustable Inner Frame Link Mount Bracket

B4WK1034
$24.61 USD
$24.61 USD
Sale Sold out
Adj. Inner Frame Link Mount Opt.
Add To Wishlist

These adjustable inner frame link mount brackets are made to be welded directly to your frame. This is a super strong CNC bent, Laser cut bracket made to take serious abuse. Perfect for a three link or four link suspension system. These are made to be attached to your frame, they have an adjustable inside width of 2"-2-5/8". We offer three different mounting angles so that you can mount your suspension joints in a neutral position to maximize joint articulation. Like all of our products, they are made in the USA from USA steel. These are sold individually.
