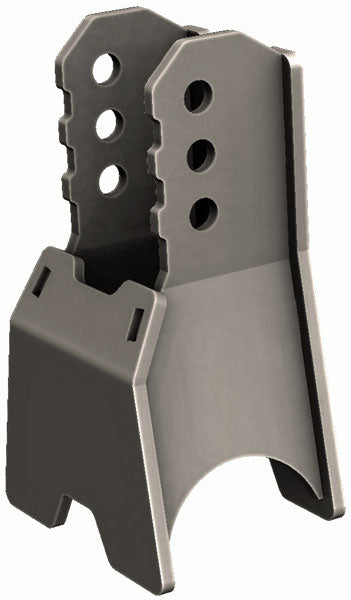

  • Link Tower

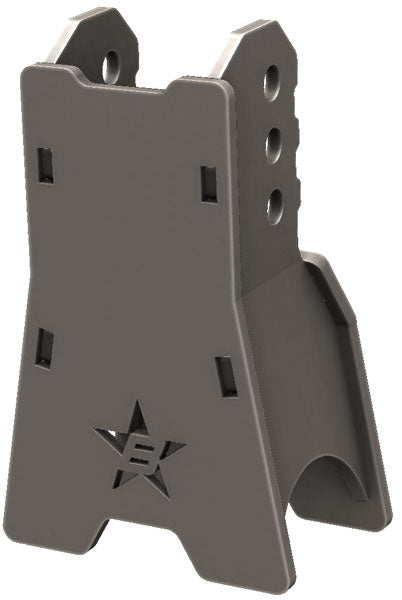

  • Control Link Mount Installed

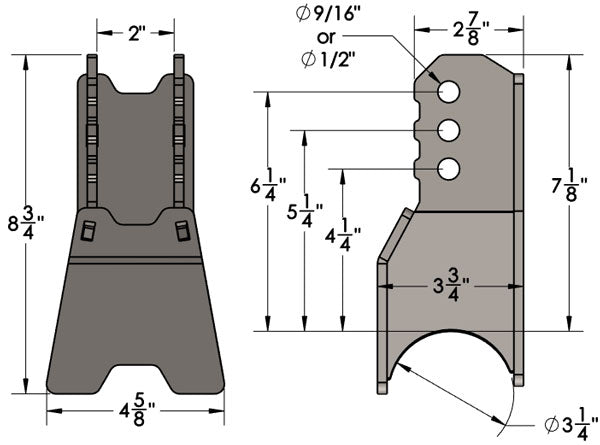

  • Control Arm Mount 2 Inch Wide Dimensions

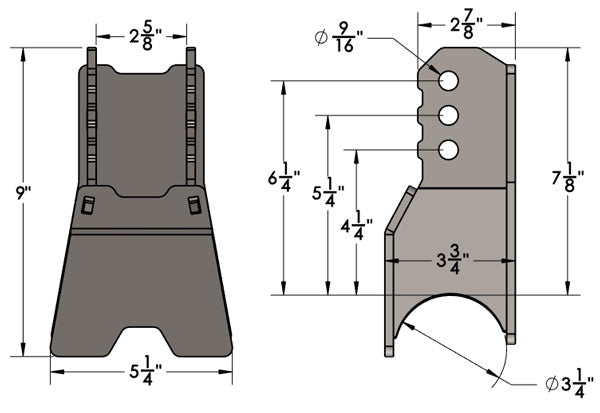

  • Link Mount Tower 2.625 Wide Dimensions
1 of 4

Barnes 4WD

Link Tower

B4WK12497
Regular price $31.96 USD
Regular price Sale price $31.96 USD
Sale Sold out
Mounting Width & Bolt Hole Size
Add To Wishlist

Our axle link tower has 3 adjustable position that can be easily changed form 4-1/4, 5-1/4, and 6-1/4 inches from the center of the joint to the top of the axle tube. In the future if you decide to change tire size this design simplifies the adjustment of your link suspension. This prevents having to cut off your old link tower in order to maintain proper suspension geometry. The link tower is incredibly strong, it is made form 1/4" steel and bent for rigidity. It also features a 1/4" weld in bridge plate. These are made to be attached to an axle with a 3-1/4 inch tube, but can easily be modified to fit other tube diameters.
