Barnes 4WD
7/8 Inch Offset Heim Steering Kit No Tubing
B4WK1199
Regular price
$195.64 USD
Regular price
Sale price
$195.64 USD
Unit price
per
Couldn't load pickup availability

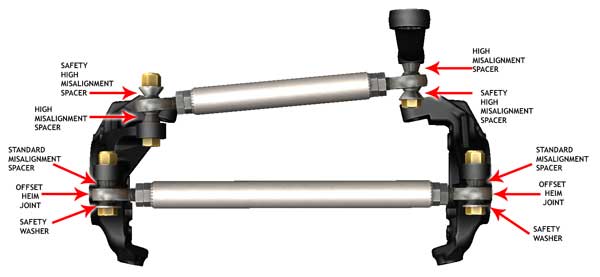

This is our universal heavy duty crossover steering kit with our super strong 7/8 inch heat treated chromoly heims. The heim joints feature a 7/8" threaded shank, and with the use of the misalignment spacers, 3/4" hardware will be used to attach the joints to the knuckles and pitman arm.

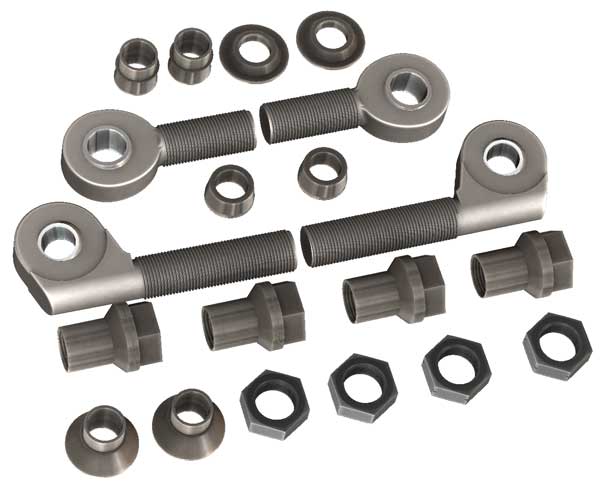

Kit Includes:
- One Right Hand and One Left Hand 7/8-14 x 7/8 Heim
- One Right Hand and One Left Hand 7/8-14 x 3/4 Offset Heim
- Two RH Hex Weld-in threaded tube inserts for 1 Inch ID tubing
- Two LH Hex Weld-in threaded tube inserts for 1 Inch ID tubing
- Two 3/4 Inch Misalignment Spacers
- Two 7/8-3/4 Inch High Misalignment Spacers
- Two 7/8-3/4 Inch Safety High Misalignment Spacers
- Two 3/4 Inch Safety Washers
- Two RH 7/8 Jam Nuts
- Two LH 7/8 Jam Nuts
This kit does not include tubing, if you need tubing you will find it here.
