Barnes 4WD
7/8 Inch Heim Steering Kit No Tubing
B4WK1160
Regular price
$155.84 USD
Regular price
Sale price
$155.84 USD
Unit price
per
Couldn't load pickup availability

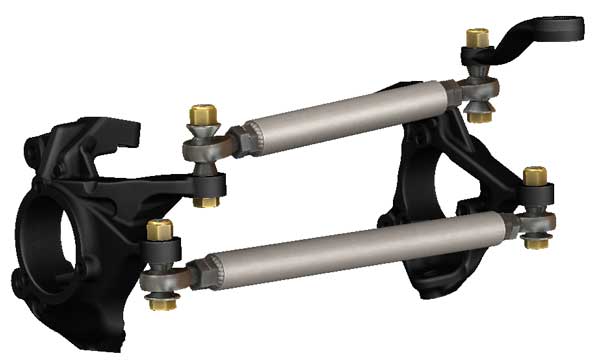

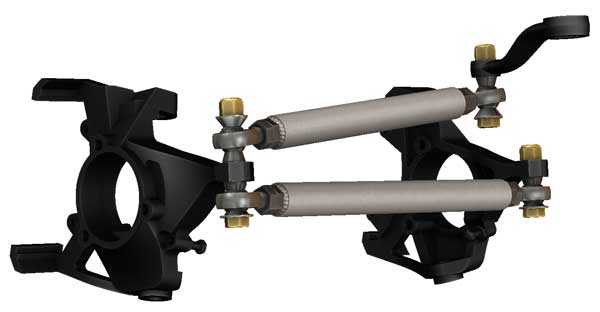

This is our universal heavy duty crossover steering kit with our super strong 7/8 inch heat treated chromoly heims. The heim joints feature a 7/8" threaded shank, and with the use of the misalignment spacers, 3/4" hardware will be used to attach the joints to the knuckles and pitman arm.

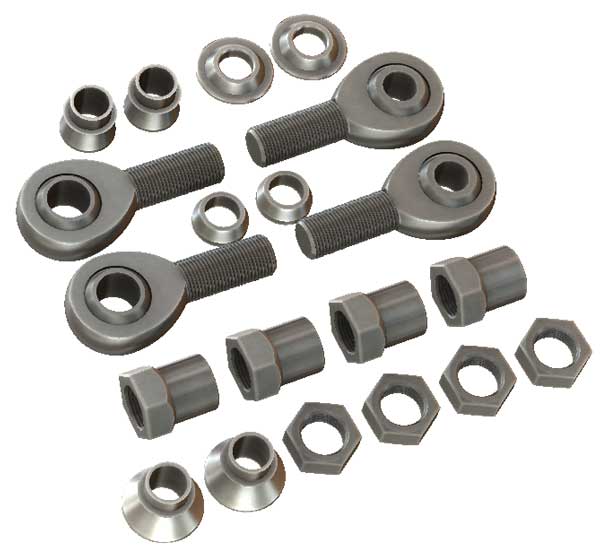

Kit Includes:
- One Right Hand and One Left Hand 7/8-14 x 7/8 Heim
- One Right Hand and One Left Hand 7/8-14 x 3/4 Heim
- 2 RH Hex Weld-in threaded tube inserts for 1 Inch ID tubing
- 2 LH Hex Weld-in threaded tube inserts for 1 Inch ID tubing

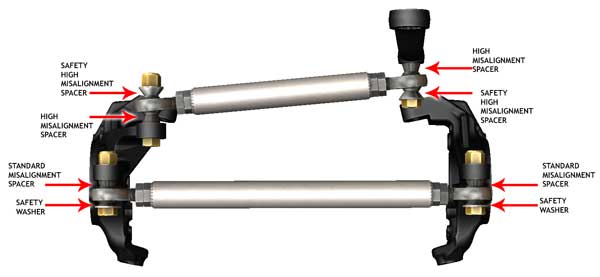

- 2 3/4 Inch Misalignment Spacers
- 2 7/8-3/4 Inch High Misalignment Spacers
- 2 7/8-3/4 Inch Safety High Misalignment Spacers
- 2 3/4 Inch Safety Washers
- 2 RH 7/8 Jam Nuts
- 2 LH 7/8 Jam Nuts
This kit does not include tubing, if you need a kit with tubing you will find it here.
