Barnes 4WD
Upper Triangulated 4 Link Combination Bracket
B4WK1148
Regular price
$73.85 USD
Regular price
Sale price
$73.85 USD
Unit price
per
Couldn't load pickup availability

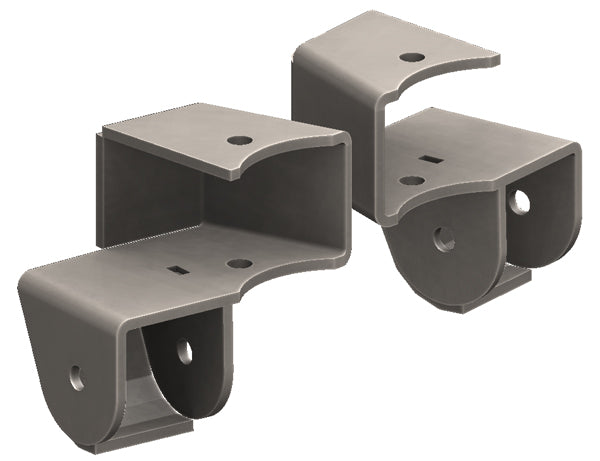

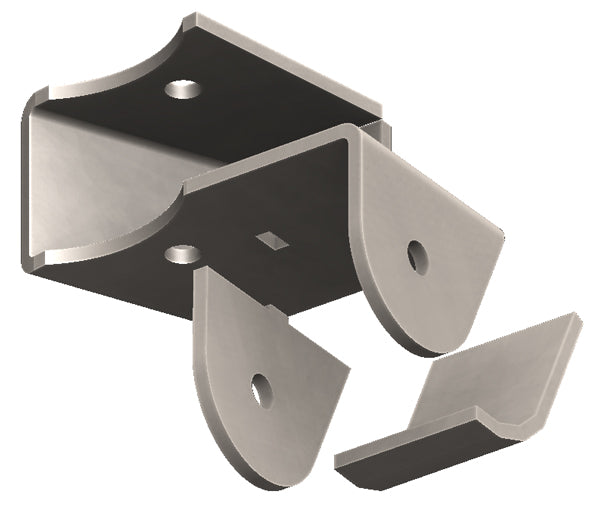

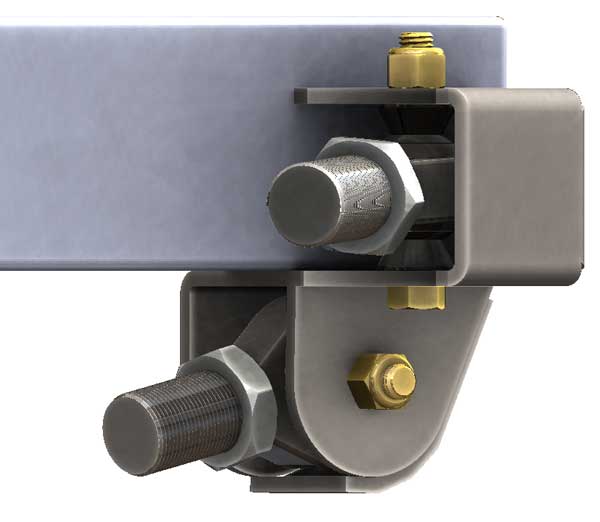

Our upper triangulated 4 link combination bracket is one of the easiest ways to add a 4 link to your vehicle. This all in one bracket includes all 4 frame mounting locations that you will need to attach your four link suspension to your chassis. Fabricated from 1/4 inch steel this is also one of the strongest brackets on the market. This bracket is designed to use a suspension joint with a 2-5/8 inch mounting width and a 9/16 inch bolt. The upper suspension joint will be in a horizontal orientation allowing the suspension joint to achieve full articulation without any binding and will accommodate various upper link angles. The lower link locations are set to 10° outwards to maximize you lower link triangulation. This bracket features 3 inches of vertical separation. This bracket will require welding and are sold in pairs.
Not compatible with Enduro Joints
