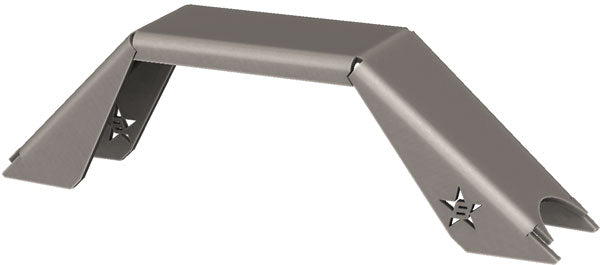

  • Small Generic Axle Truss

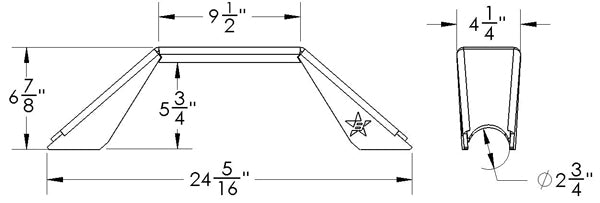

  • Small Axle Truss Dimensions

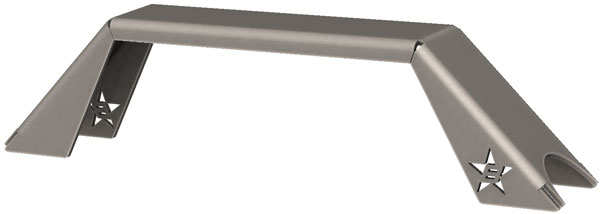

  • Medium Generic Axle Truss

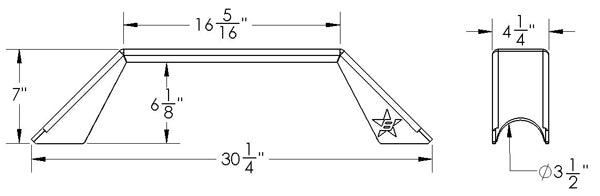

  • Medium Axle Truss Dimensions

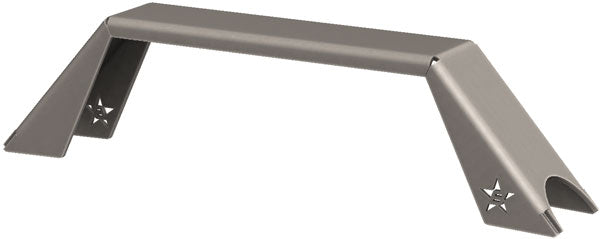

  • Large Generic Axle Truss
  • Large Axle Truss Dimensions
1 of 6

Barnes 4WD

Universal Axle Truss

B4W250800
Regular price $106.00 USD
Regular price Sale price $106.00 USD
Sale Sold out
Truss Size

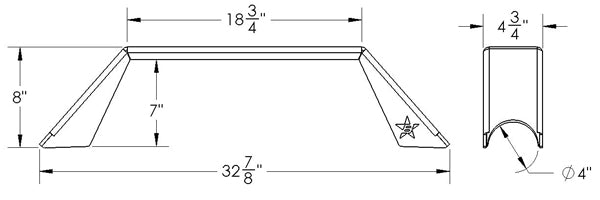

The Barnes4WD Universal axle truss is designed to be add a strong attachment point for any link suspension on any axle. The truss is made from one piece of 1/4" steel that is CNC laser cut and CNC bent in house with American steel. The one piece design makes installation a breeze. Just simple place the truss on your axle at its desired pinion angle and weld. We offer the generic axle truss in 3 different sizes to fit any axle out there. Simply look at our dimensional drawings of each size and pick out the right truss for you. Our trusses ship bare and may require some grinding depending on the application.
