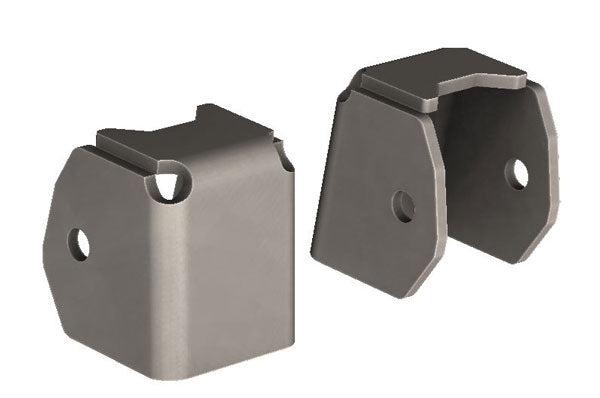

  • TRUSS TOP LINK MOUNT

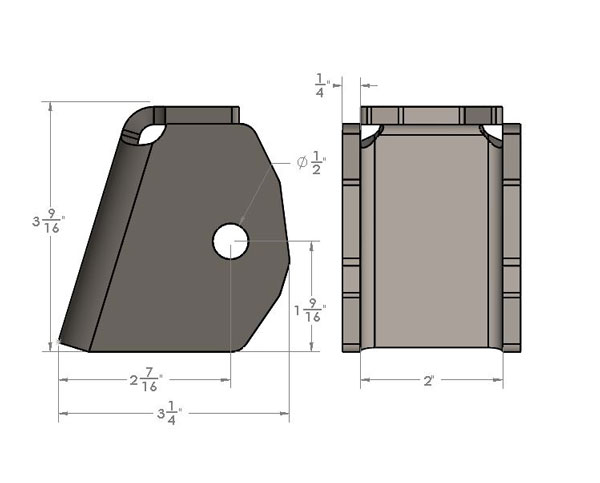

  • 2 INCH WIDE MOUNT DIMENSIONS

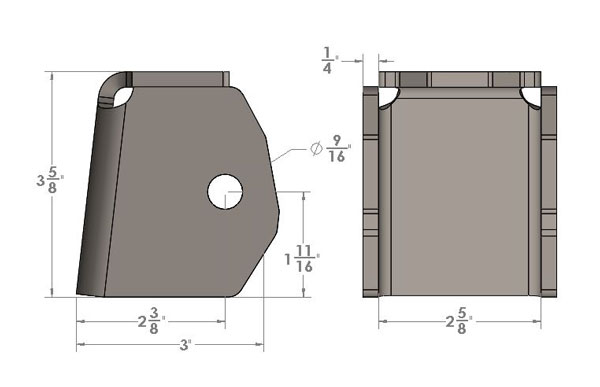

  • 2.625 INCH WIDE MOUNT DIMENSIONS

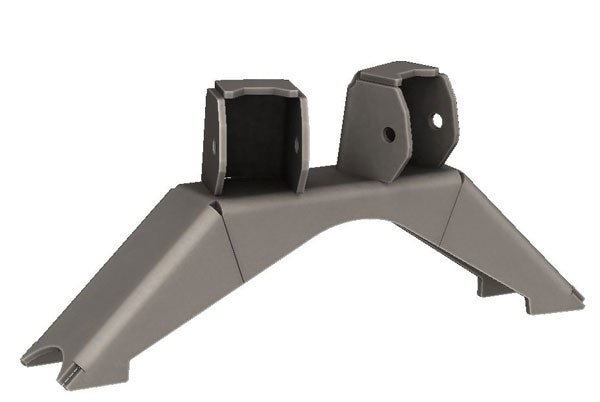

  • CONTROL ARM BRACKETS INSTALLED
  • 4 Link Upper Control Arm Bracket
  • Axle Bridge Control Arm Mount
1 of 6

Barnes 4WD

Truss Link Mount Brackets Pair

B4W250200P-1
Regular price $28.00 USD
Regular price Sale price $28.00 USD
Sale Sold out
Mounting Width & Bolt Hole Size

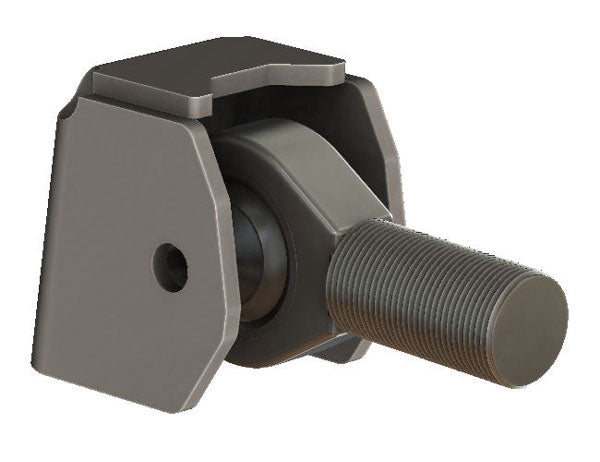

Axle Truss Brackets are a great addition to our lineup. These mounts are made to be welded on top of our axle truss. This is a super strong CNC bent, Laser cut bracket made to take serious abuse. These work great when you are trying to keep the body as low as you can to the axles, to give you the lowest center of gravity. Perfect for a four link suspension system. These brackets have an inside width of 2 5/8" or 2" for heims with misalignment spacers installed. Like all of our products, they are made in the USA from USA steel.
