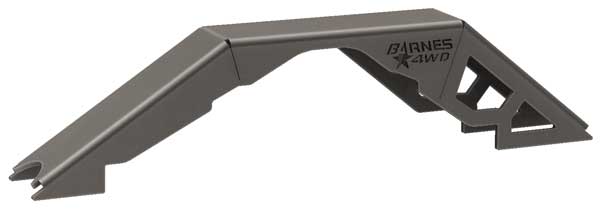

  • Corporate 14 Bolt Axle Truss

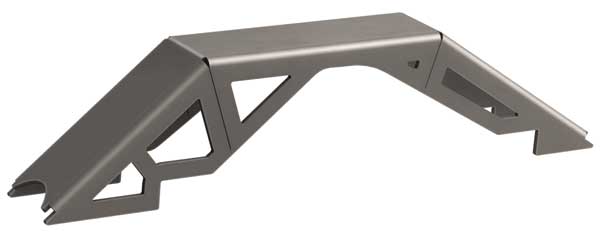

  • GM 10.5 Axle Truss

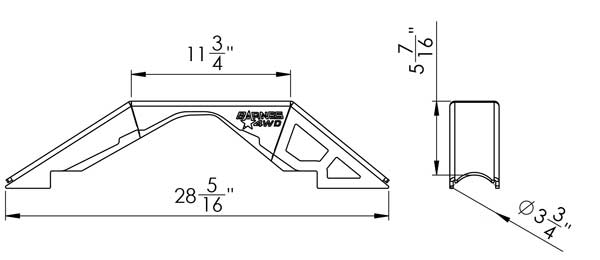

  • GM 14 Bolt Short Axle Truss Dimensions

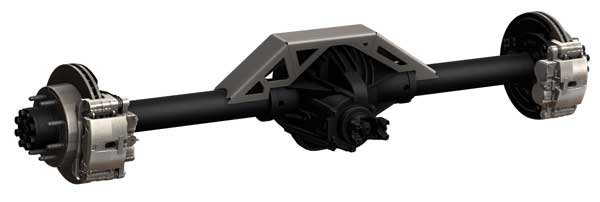

  • Short 14 Bolt GM Truss Installed (Axle Not Included)

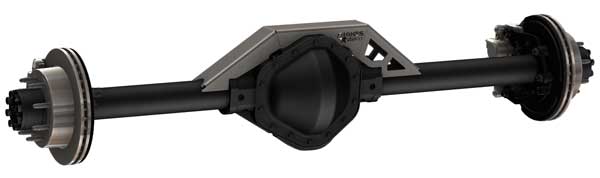

  • Chevrolet 14 Bolt Axle Bridge (Axle Not Included)
1 of 5

Barnes 4WD

Pro Series GM 14 Bolt Axle Truss 1 Piece Short

B4W250745
Regular price $69.09 USD
Regular price Sale price $69.09 USD
Sale Sold out
Add To Wishlist

If you are looking for strength, and durability in a compact axle truss for you GM 14 bolt rear axle, our 1 piece truss is the perfect solution.  This truss was designed for the folks looking to strengthen their 14 bolt housing and still have plenty of space on their axle tubes for attaching leaf springs, link mounts, shocks, or other components.  The top surface of this truss is the perfect location to mount your upper links when building a link suspension.  Manufactured from 1/4 inch steel to provide plenty of strength while not adding excessive weight.  This product is sold individually and will ship bare steel, ready to be welded to your axle.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
Garrett Boone
Solid product

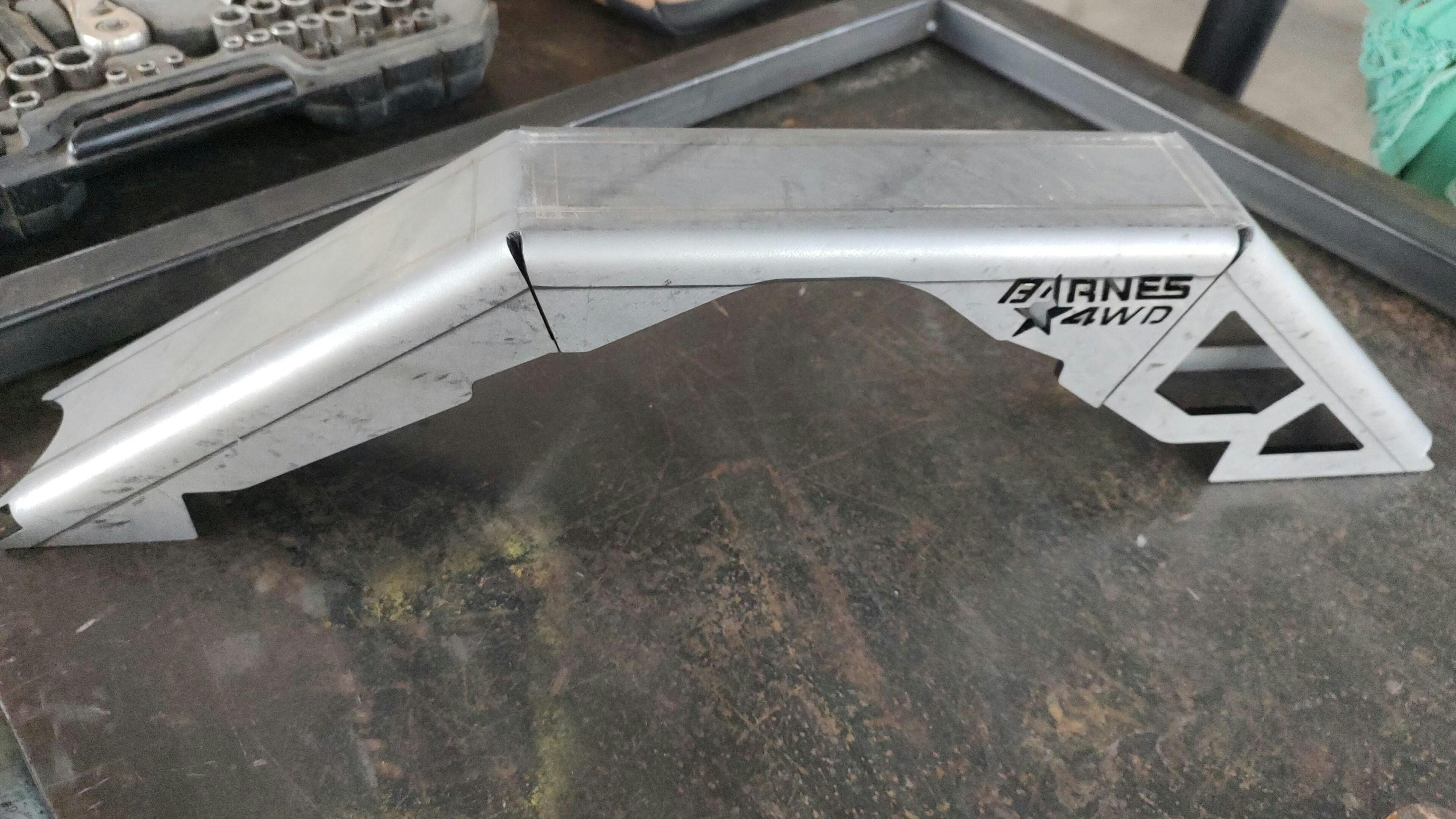

It’s not installed yet but I purchased from Barnes years ago with a great experience and fast forward 5 years or so I get the same quality results. After I placed my order it was shipped only a couple hours later and the product looks great. I’m sure it’ll fit and function as it should.

S
Samuel

Awesome worked perfectly

C
Chris

Solid product, excellent shipping will purchase with this company again in the near future. Highly recommended.
