Kingpin 60 Standalone Double Ended Ram Mount

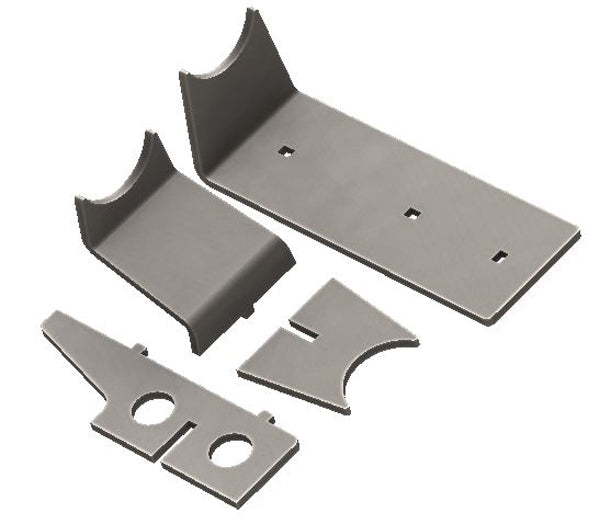

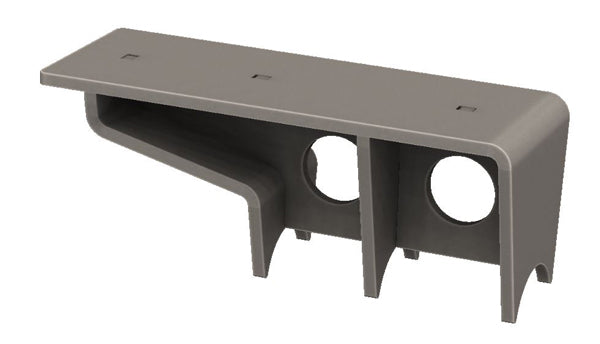

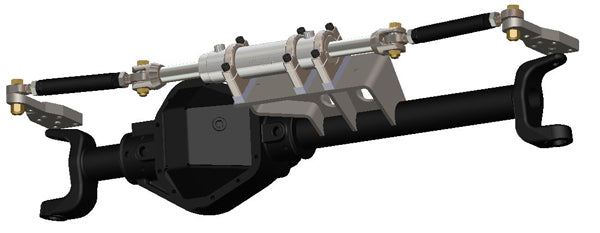

This kit is designed to mount a double ended ram to a King Pin Dana 60 without using a truss or skid system. The Bracket centers the ram on the axle giving you equal length tie rods. All parts are CNC laser cut and CNC bent in house out of 3/8" American Steel. The bracket is designed to be used with a PSC Motorsports 2.5"x8" double ended cylinder (SCX2212 or SC2212). We have designed this double ended steering cylinder mount to use the proper geometry for full hydraulic steering. All parts come bare steel and require welding.
