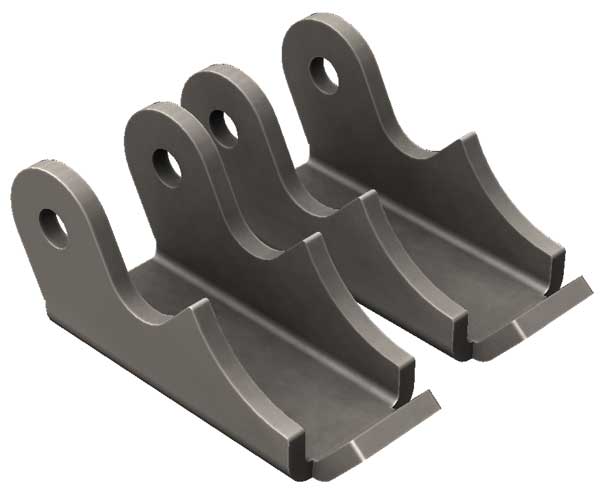

  • Jeep Wrangler YJ Rear Shock Brackets

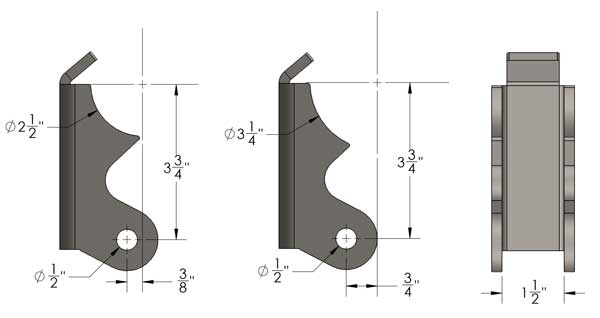

  • YJ Shock Bracket Dimensions
1 of 2

Barnes 4WD

Jeep Wrangler YJ Rear Axle Shock Brackets

B4W250513XP
Regular price $31.09 USD
Regular price Sale price $31.09 USD
Sale Sold out
Axle Tube Diameter
Add To Wishlist
If you're looking to upgrade your shock brackets on your YJ, this is the upgrade for you! Made out of our 1/4' steel for a lightweight yet very durable design. We offer two axle diameters with this bracket. 2-1/2" will be the correct diameter for stock axles. 3-1/4" will fit the 8.8, Dana 60, and other larger rear axles. These will come standard with a 1-1/2" mounting width and a 1/2" bolt hole. These will be a great upgrade to any YJ with damaged shock brackets, or if you're wanting to beef up your stock components.
These will mount the shocks higher on the axle tube for better clearance, bump stop extensions or shorter shocks may be needed depending on your setup.
