Barnes 4WD

Jeep JT & JL Rubicon to Jeep TJ, LJ, XJ, ZJ, or MJ Front Axle Swap Bracket Set.

B4WK12785
$105.34 USD
$105.34 USD
Sale Sold out
Add To Wishlist

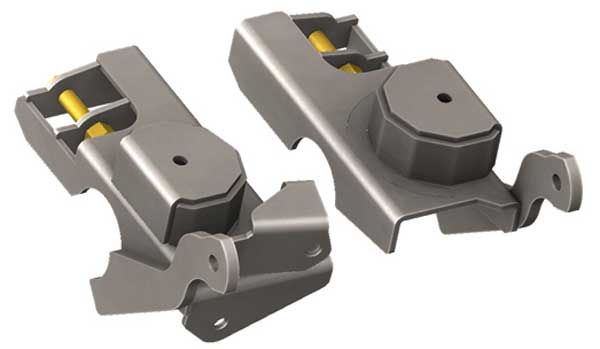

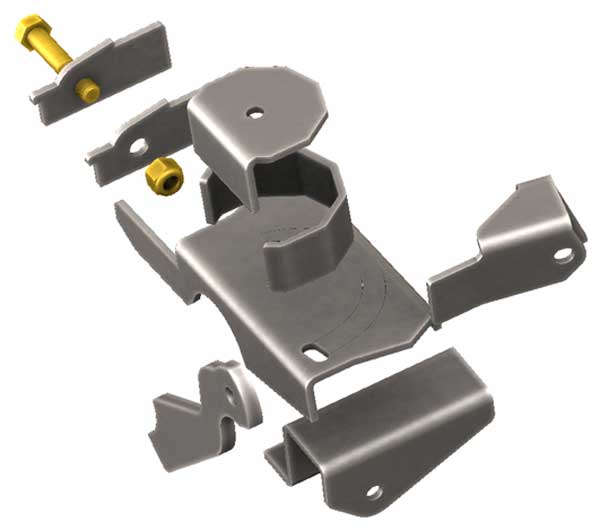

If you are looking for a way to swap a JT or JL Rubicon axle into your Jeep TJ, LJ, XJ, or MJ we have the parts that you need!  This kit includes all of the brackets attached to the coil buckets while retaining the factory upper and lower control arm brackets.

This kit will work with the following vehicles:
  • 1997-2006 Jeep Wrangler TJ
  • 2003-2006 Jeep Wrangler Unlimited LJ
  • 1983-2001 Jeep Cherokee XJ
  • 1985-1992 Jeep Comanche MJ

Installation notes:
  • The JT/JL axle has a different lug pattern and width than the original axle
  • Welding is required
  • No provisions are provided for steering, brakes, or a driveshaft, they are the responsibility of the end user
  • Adjustable upper or lower control arms are required and will need to be drilled to match the new bolt size
  • The hardware from the new axle is recommended for installation in the axle side control arm locations.
