Barnes 4WD

Jeep JK Superduty Dana 60 Axle Truss Swap Kit

B4WK12324
Regular price $313.17 USD
Regular price Sale price $313.17 USD
Sale Sold out
Dana 60 Axle Year Model
Add To Wishlist

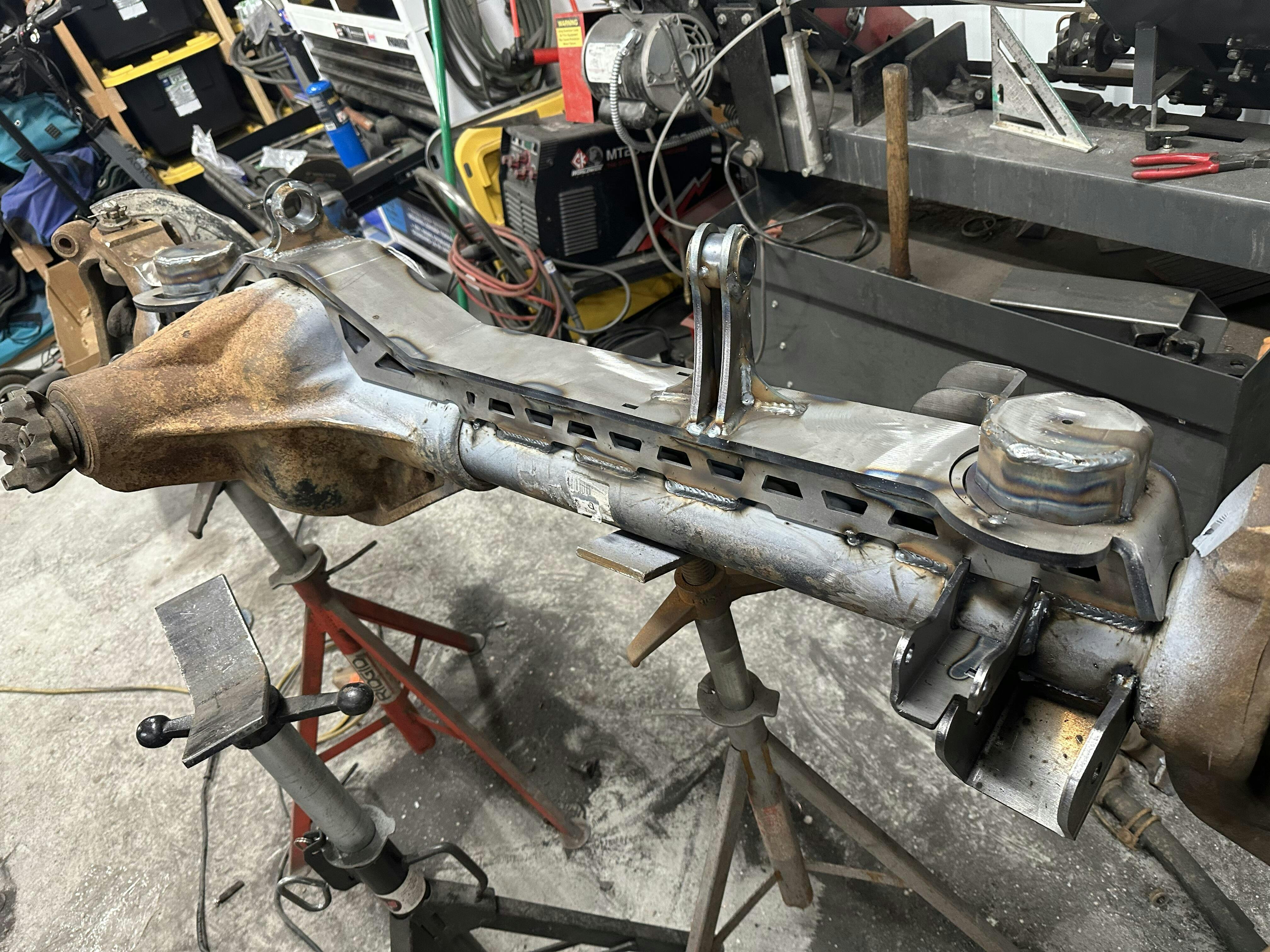

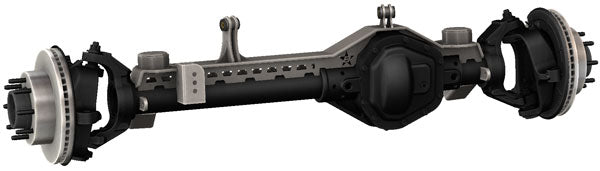

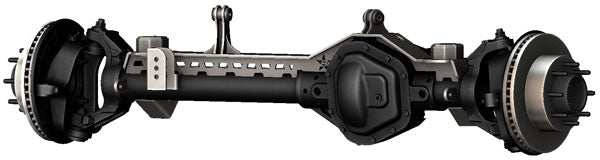

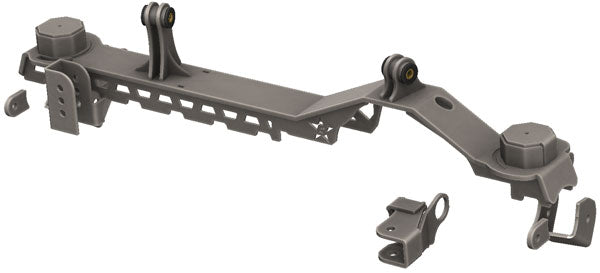

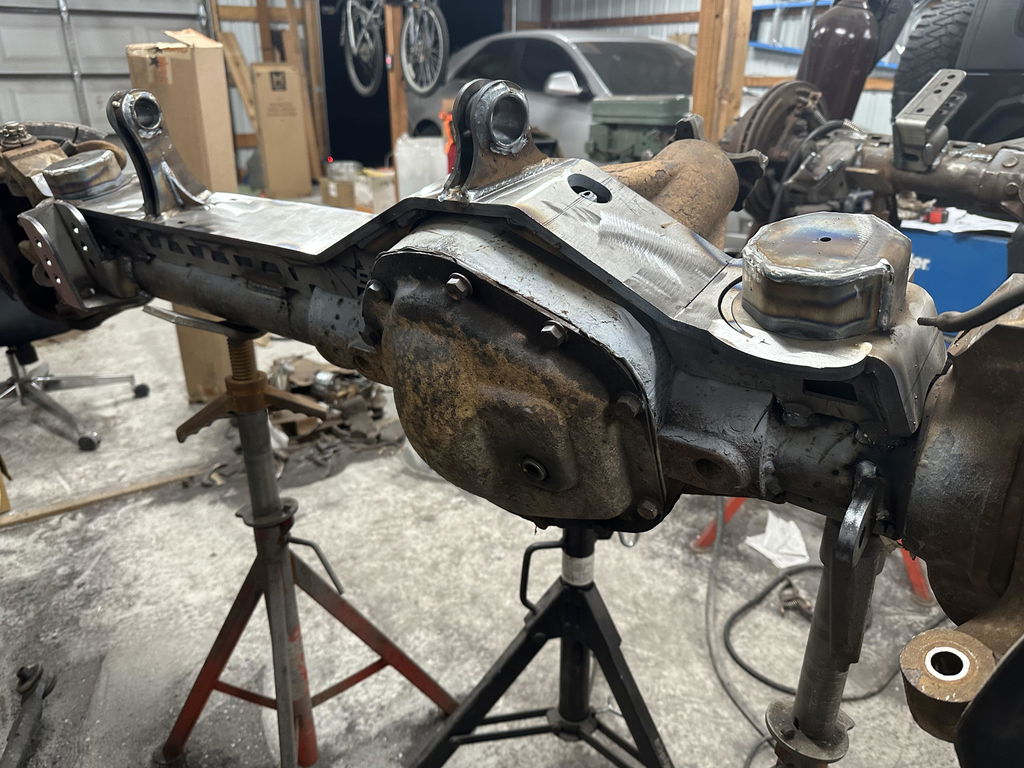

We designed our Jeep JK Superduty Dana 60 swap kit to make it easy for you to put a Dana 60 from a 1999-2004, or 2005-up Ford Superduty in the front of your 2007-2018 Jeep JKU or JK.  This kit is designed to work with a Dana 60 driver drop front axle out of a 1999-2004, or 2005-Present Ford F-250 or F-350.  All parts of this kit are keyed to the truss, making installation a breeze.  Simply center the truss, set the angle, and all other components will locate off from the truss.  This kit includes all of the needed suspension brackets to install a Dana 60 under your Jeep JK, welding is required.

Installation Notes:
Trimming of the casting is required
The lug pattern on the Superduty Dana 60 is 8x170 this will not match the factory lug pattern on your Jeep.
Custom lower control arms and a custom track bar is required.
A new frame side track bar bracket is included.
Brake lines, driveshaft modifications, vent tube, and steering linkages are the responsibility of the end user.
