Barnes 4WD

Jeep JK Super Duty Dana 60 Steering Kit

Regular price $704.74 USD
Regular price Sale price $704.74 USD
Sale Sold out
Add To Wishlist

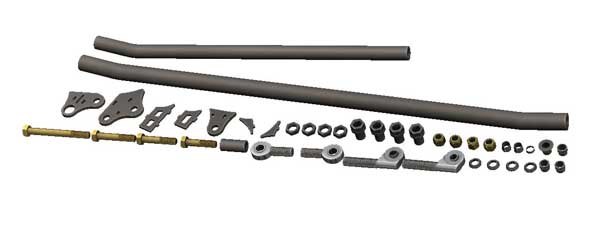

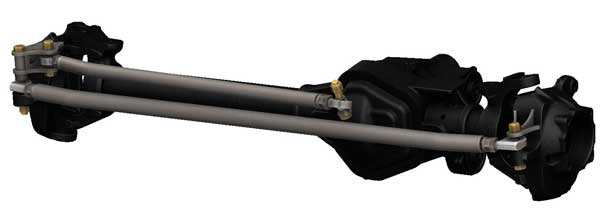

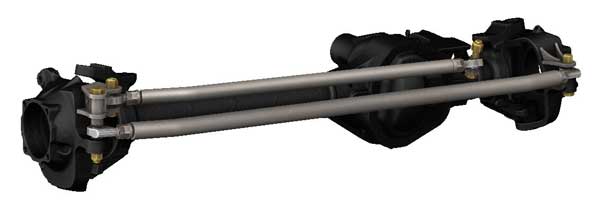

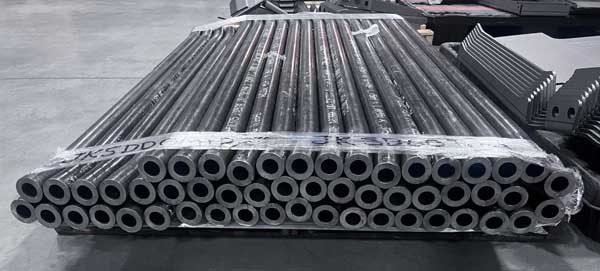

Looking to get lock to lock steering on your Super Duty swapped Jeep JK and JKU? Then look no further. Our Barnes 4wd Jeep JK Super Duty Dana 60 Steering kit includes everything you need to add steering to your Super Duty swapped JK. This kit has been designed to achieve proper ackerman steering angles. The kit is sold with our 7/8" 2 piece heat treated chromoly hiem joints. The tie rod is manufactured from 1.75" OD 3/8" wall DOM pre bent and cut to length. The drag link is manufactured from 1.5" OD 1/4" wall DOM pre bent and cut to length. The weld on steering arms are laser cut in house from American 3/8" and 1/4" steel. The kit will ship bare steel and ready to weld with all grade 8 3/4" hardware.

Welding and fabrication is required.

Hydraulic assist or steering stabilizer clamp sold here

Super Duty Dana 60 Axle Swap sold here.


2007-2018 Jeep Wrangler JK and JKU

Axle fitment:

2005-2016 Super Duty Dana 60 From a F-250 or F-350

Wheel Fitment:

17" wheels or greater with 5.25" or less of back spacing
