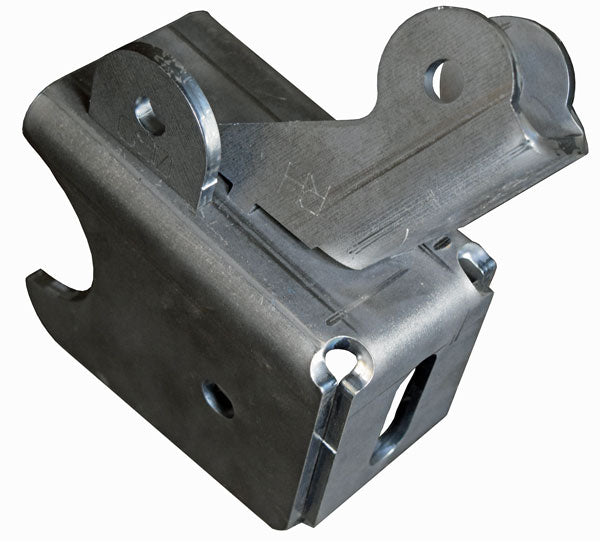

  • JK Rear Control Arm Mount

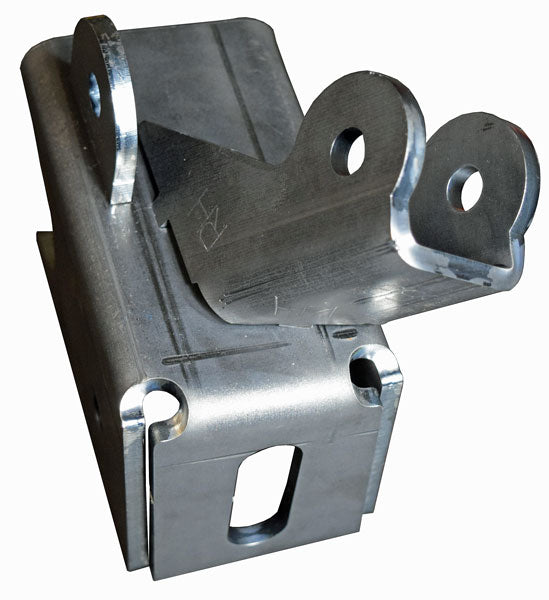

  • JK Rear Control Arm Bracket

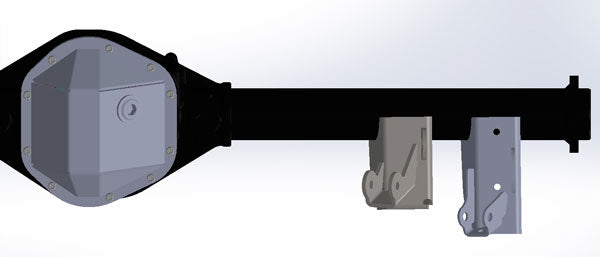

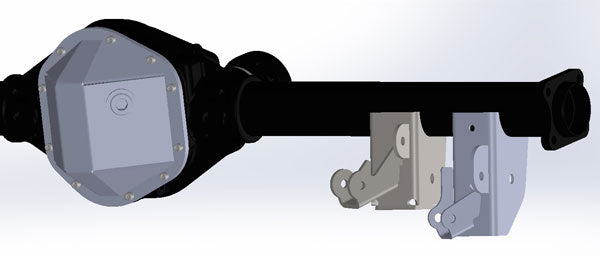

  • JK Rear Control Arm Bracket Clearance
  • Stock VS Ours
1 of 4

Barnes 4wd

Jeep JK Heavy Duty Rear Lower Control Arm And Rear Shock Relocation Bracket

B4W0040K
Regular price $82.54 USD
Regular price Sale price $82.54 USD
Sale Sold out
Add To Wishlist
The rear shock mounting brackets on the Jeep JKs are the lowest point on the rear axle, they are made from flimsy sheet metal and are prone to damage.  Our JK heavy duty rear lower control arm and rear shock relocation bracket addresses both of theses issues.  With this bracket your lower control arm bracket will remain in the factory location, but your shock mount and sway bar mount will be moved up 2".  This is a great advantage off-road and will add some peace of mind to your next trail ride, you will gain 1 9/16" clearance overall, and move your shocks and sway bar up 2".  You will need to make sure that you are using the correct shocks for this application and verify that you are bottoming out on your bump-stops before bottoming out your shocks.  This bracket is manufactured from 1/4" steel, it will ship bare, and welding is required.  The main body is etched with the location of the sway bar bracket and the shock mount is keyed for ease of assembly, this will fit all Jeep JKs 2007-Current.  These are sold in pairs.
