Jeep JK Front Axle OTK Track Bar Bracket

Regular price $34.26 USD
Regular price Sale price $34.26 USD
Sale Sold out
Add To Wishlist

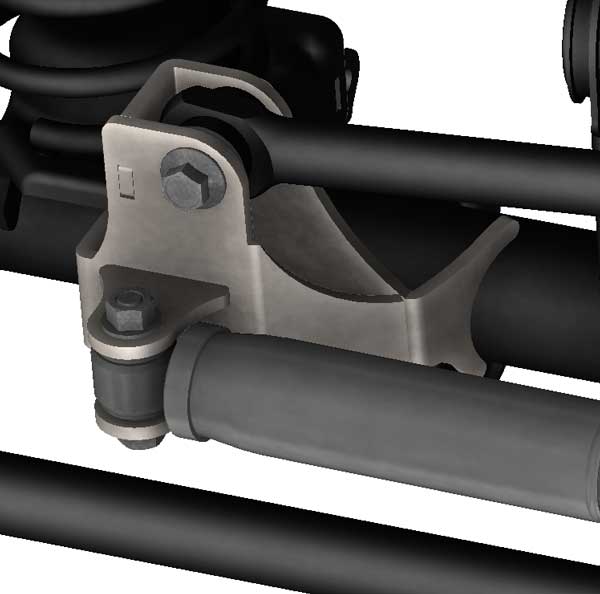

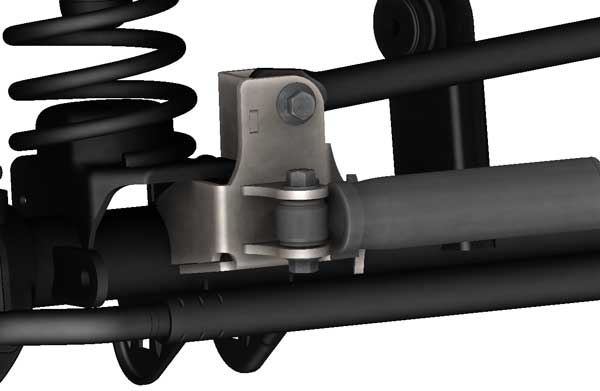

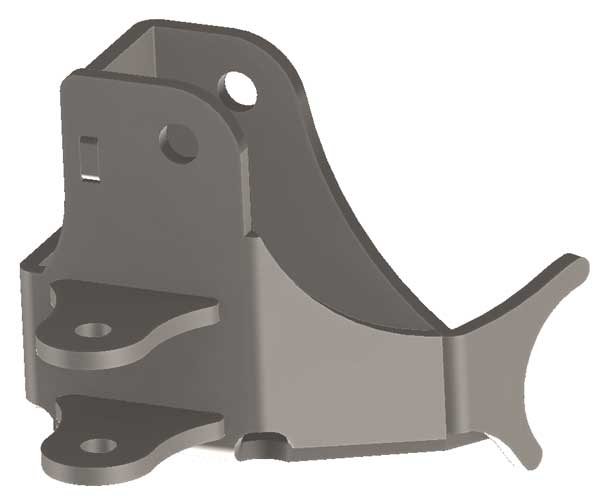

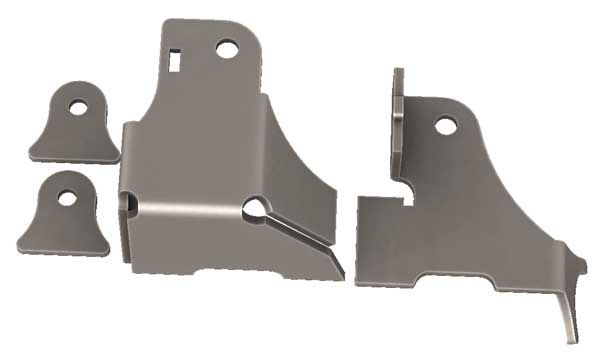

If you have converted the drag link on your Jeep Wrangler JK or JKU to over the knuckle, this front axle track bar bracket will correct you front geometry, and avoid bump steer.  Our lifted track bar bracket will move the trackbar up at the axle, so after a drag link flip the track bar and draglink angles will be moved back to the correct angular relation.  Two tabs are included to accommodate mounting factory steering stabilizers, most aftermarket stabilizers, and most hydraulic assist cylinders.  Installation is as easy as, removing the old track bar bracket, slide the new track bar bracket assembly down the axle tube until it contacts the side and bottom of the coil spring seat, position the two mounting tabs for your steering stabilizer or hydraulic assist ram, and weld in place.  This bracket is compatible with our JK front axle trusses.  The factory mounting width of 1-5/8 inch and a 14mm or 9/16 inch bolt are used in the track bar mounting location.  All of the components in this kit are manufactured from 1/4 inch thick steel, it will ship bare, and welding is required for installation.

Vehicle Applications:
2007-2018 Jeep Wrangler JK
2007-2018 Jeep Wrangler Unlimited JKU
Dana 44 and Dana 30 axles
