Barnes 4WD

Jeep JK Dana 44 to Jeep TJ, LJ, XJ, ZJ, or MJ Front Axle Swap Kit

B4WK12368
Regular price $259.32 USD
Regular price Sale price $259.32 USD
Sale Sold out
Add To Wishlist

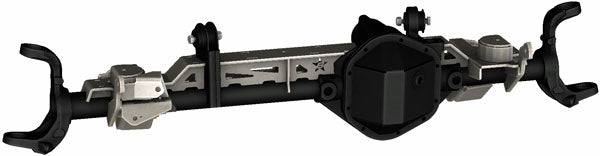

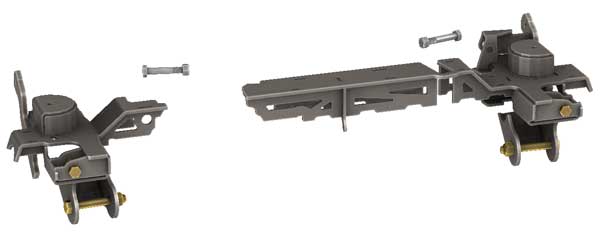

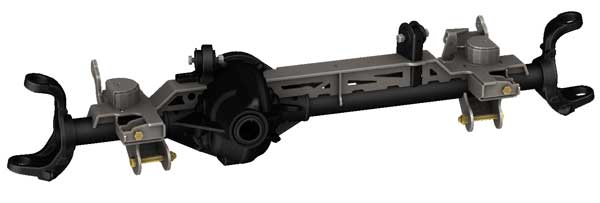

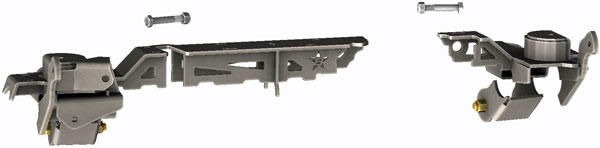

If you are looking for a way to swap a JK or JKU axle into your Jeep TJ, LJ, XJ, or MJ we have the parts that you need!  This kit includes all of the brackets that you will need to attach all of the needed suspension components to your Jeep, and best of all it requires very little measuring!  All components of this kit are uniquely keyed so the brackets will always go in the correct location, and orientation.  This kit also gives you the added benefit of a truss, for a significant increase in strength. This kit is manufactured from a combination of 3/16" and 1/4" thick steel.  You will need a factory Dana 44 front axle out of a 2007-2018 Jeep Wrangler JK or JKU.

This kit will work with the following vehicles:
  • 1997-2006 Jeep Wrangler TJ
  • 2003-2006 Jeep Wrangler Unlimited LJ
  • 1983-2001 Jeep Cherokee XJ
  • 1985-1992 Jeep Comanche MJ

Installation notes:
  • The JK axle has a different lug pattern and width than the original axle
  • Welding is required
  • No provisions are provided for steering, brakes, or a driveshaft, they are the responsibility of the end user
  • Adjustable upper or lower control arms are recommended
