JK 3 Link Front Upper DIY Kit
B4WK12461
Regular price
$214.00 USD
Regular price
Sale price
$214.00 USD
Unit price
per
This kit includes all of the required components to build a front upper control arm for our Jeep JK 3 link kit. This kit will require cutting the tubing to length and welding. It will also require that the right side upper control arm mount on the axle be converted to a double shear bracket with a 2-5/8 inch mounting width and a 9/16 inch bolt hole.

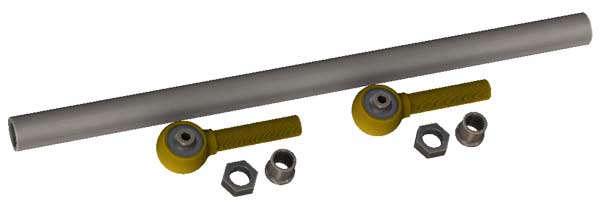

Kit components:
- 1 1-3/4 Inch O.D. X 1/8 inch wall D.O.M. tubing 36 inches long
- 1 1-1/4 x 12 Jam nut right hand
- 1 1-1/4 x 12 Jam nut left hand
- 1 1-1/4 x 12 Right hand thread tube insert for 1-1/2 inch I.D. tubing
- 1 1-1/4 x 12 Left hand thread tube insert for 1-1/2 inch I.D. tubing
- 1 Enduro Joint 2-5/8 inch mounting width 9/16 inch bolt hole 1-1/4 x 12 right hand thread
- 1 Enduro Joint 2-5/8 inch mounting width 9/16 inch bolt hole 1-1/4 x 12 left hand thread
