JEEP JK 1 TON 7075 ALUMINIUM STEERING FLIP KIT

B4WK0286
$499.99 USD
$499.99 USD
Sale Sold out
Important notes!
  • - This kit does not include a lifetime warranty. Aluminum is much more elastic that DOM and will serve you better on the rocks, however it is not indestructible and we cannot guarantee that these links will hold up to all forces applied to them.



  • - This kit does not require any drilling/reaming of the knuckles or pitman arm. It will bolt right in.



  • - Stock wheels will require 1.5" wheel spacers, or you will need a 17" wheel with 4.5" of backspacing or less



  • - Depending on the design of some aftermarket wheels additional spacers or steering stop adjustments could be needed.



  • - Steering Stabilizer brackets that mount outside of the stock location may run into clearance issues. This kit is designed to work with steering stabilizers that mount in the factory location.

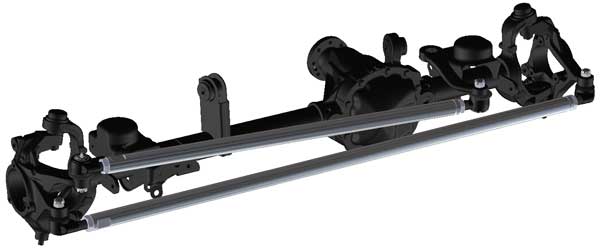

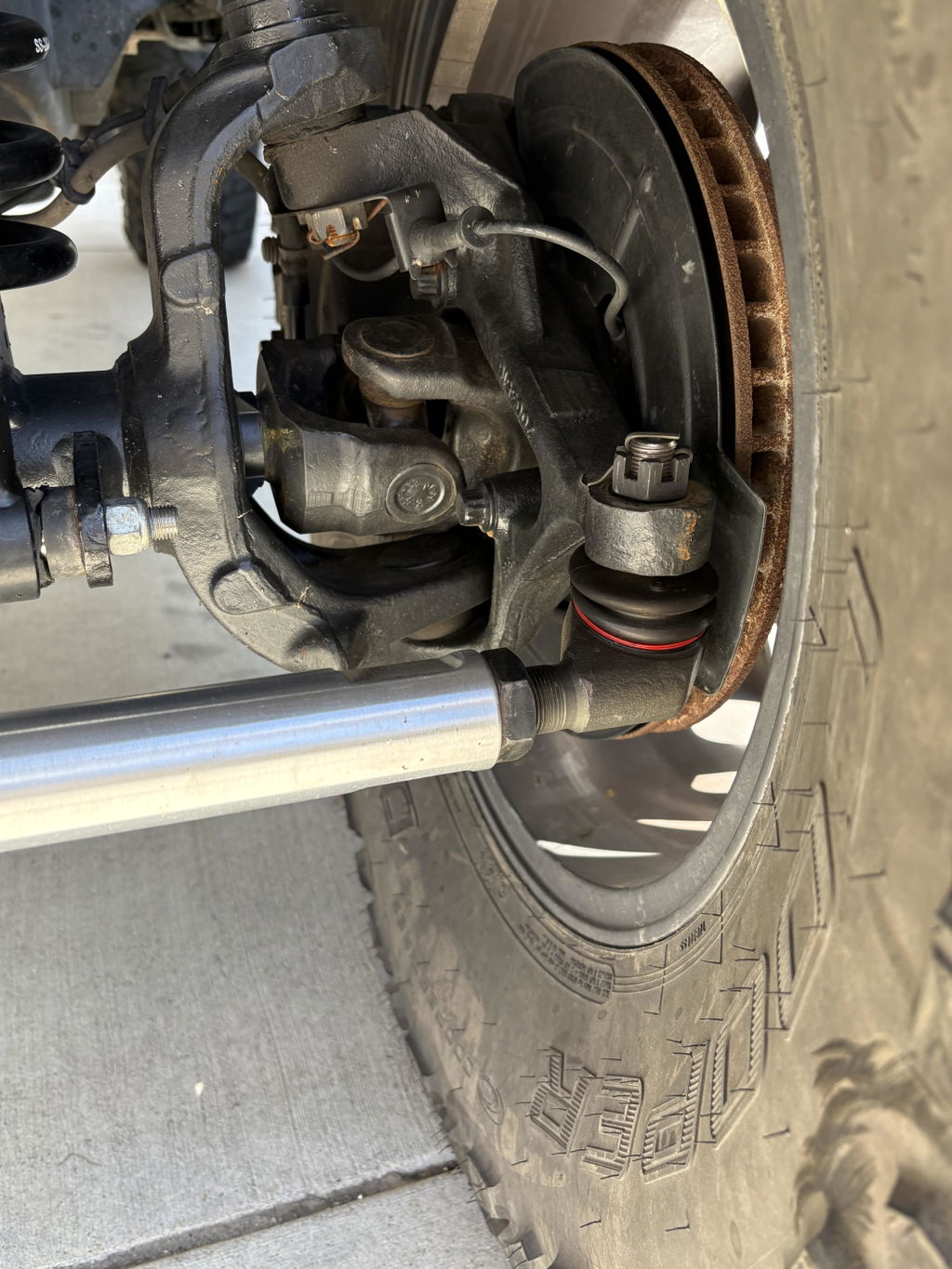

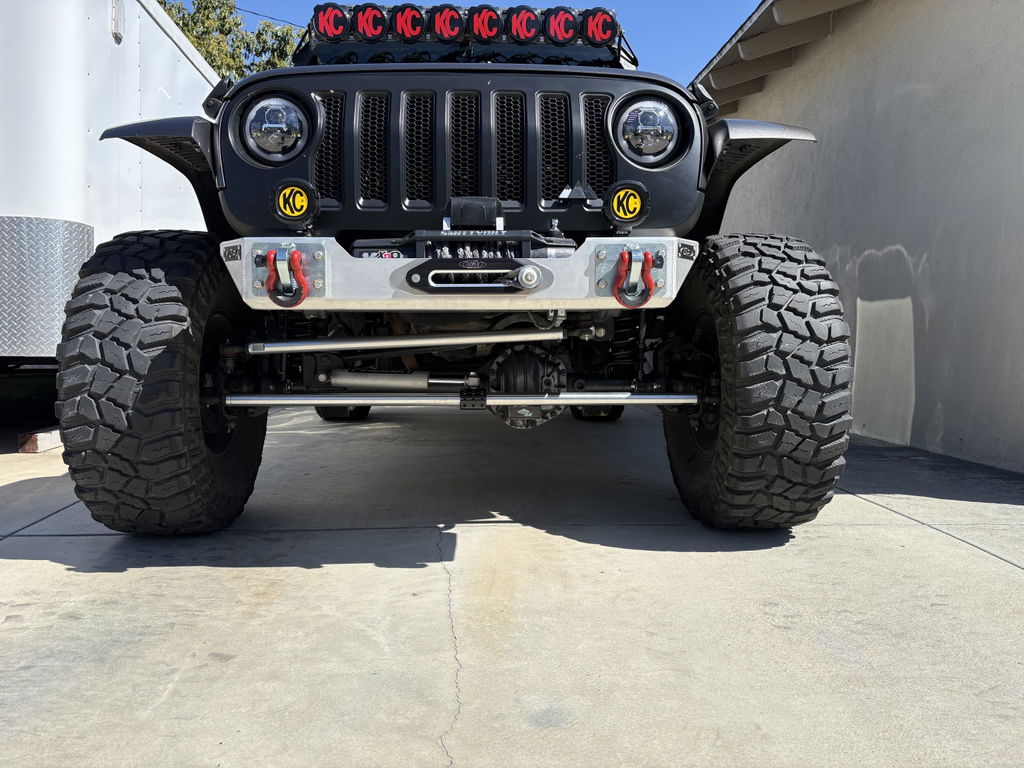

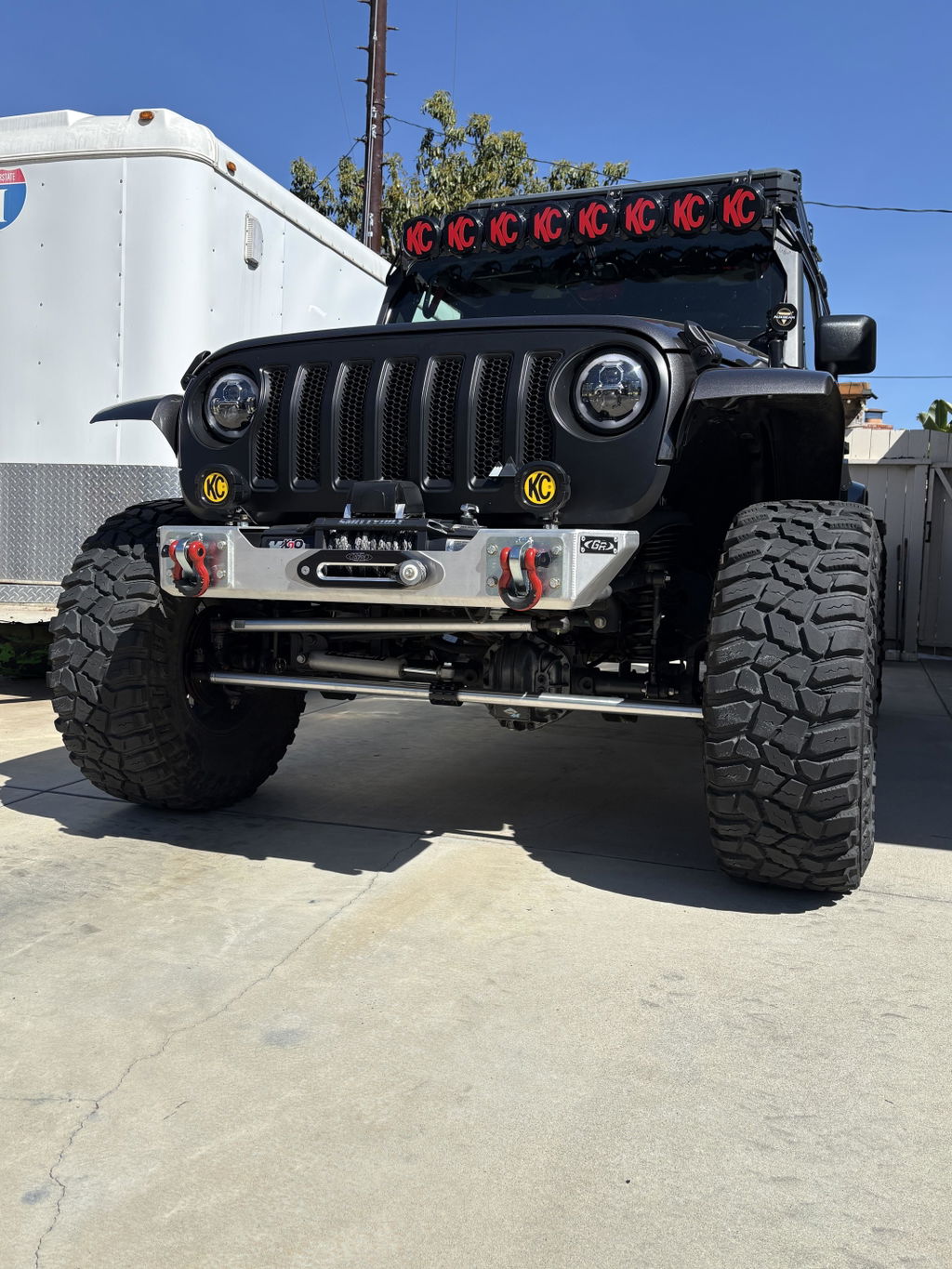

Our famed aluminum steering kit just got better. These is the same 1.5 solid aluminum links that come in our standard aluminum kit. However, the drag link will be installed over the knuckle for better linkage angles and keeps your drag link up out of harms way. This kit will included a drag link and a tie rod. Your steering linkage will come with our tried and true 1 ton tie rod ends. We've tested this kit around the US and have proven it to be strong and reliable. Whether you have a wheeling rig or a daily driver, this is the kit for you.

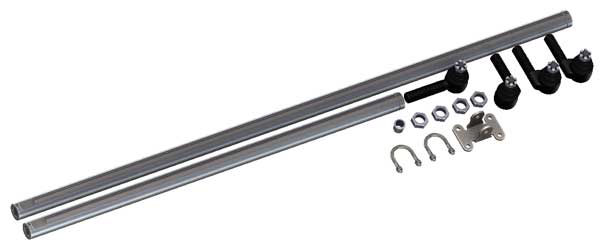

Kit Includes:
  • 1 Aluminum Tie Rod
  • 1 Aluminum Drag Link
  • 3 1 Ton Tie Rod Ends
  • 1 1 Ton Drag Link End
  • 1 Steering Stabilizer Bracket
  • 1 Tapered Steering Knuckle Insert
