  • Flat Bottom Link Mount Bracket Pair

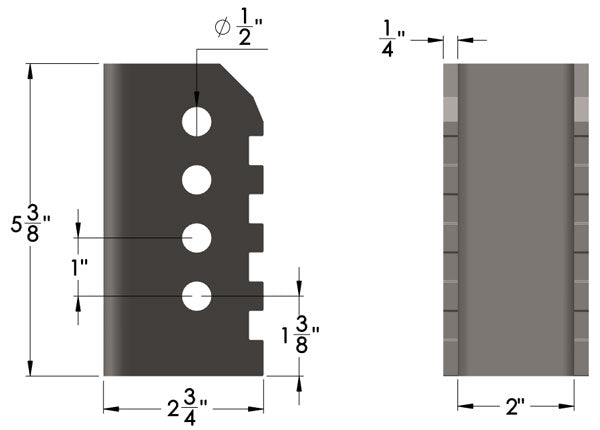

  • Flat Bottom Link Bracket 2 Inch Dimensions

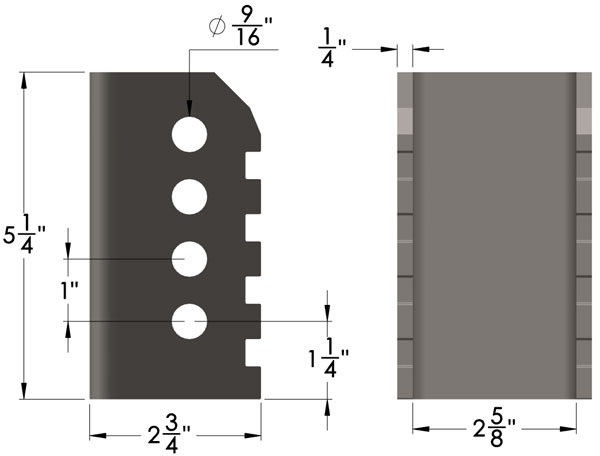

  • Flat Bottom Link Mount 2.625 Inch Dimensions
1 of 3

Barnes 4WD

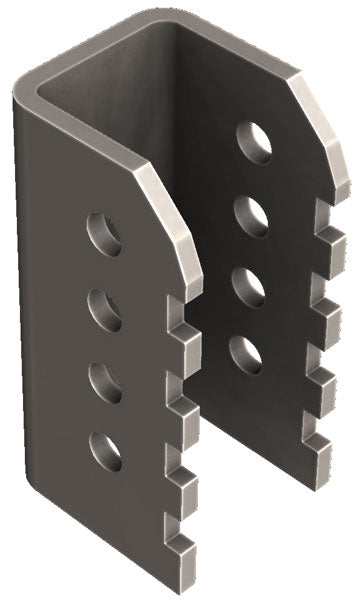

Flat Bottom Link Mount Bracket Single

B4W250778
Regular price $12.09 USD
Regular price Sale price $12.09 USD
Sale Sold out
Mounting Width and Bolt Hole Size
Add To Wishlist

These flat bottom link mounts are made to be welded directly to any flat surface. This is a super strong CNC bent, Laser cut bracket made to take serious abuse. Perfect for a three link or four link suspension system. These are made to be attached to any flat surface and have an inside width of 2 5/8" or 2" for heims with misalignment spacers installed. Like all of our products, they are made in the USA from USA steel.  These brackets are sold individually.
