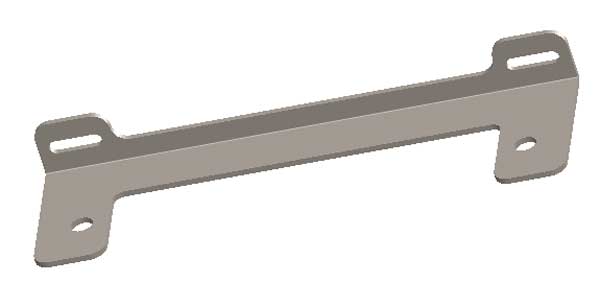

  • Fairlead Led Bracket

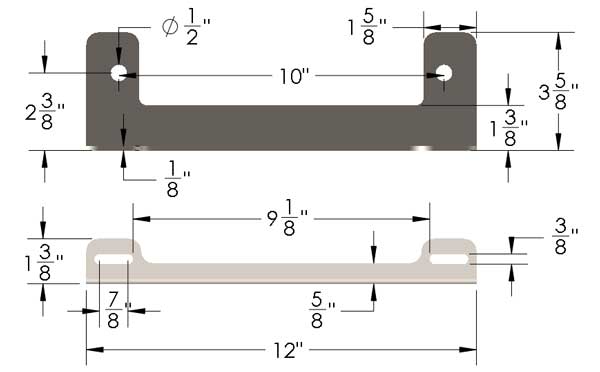

  • Fairlead Led Mount Dimensions
1 of 4

Barnes 4WD

Fairlead LED Mount

B4W135109
Regular price $7.65 USD
Regular price Sale price $7.65 USD
Sale Sold out
Add To Wishlist

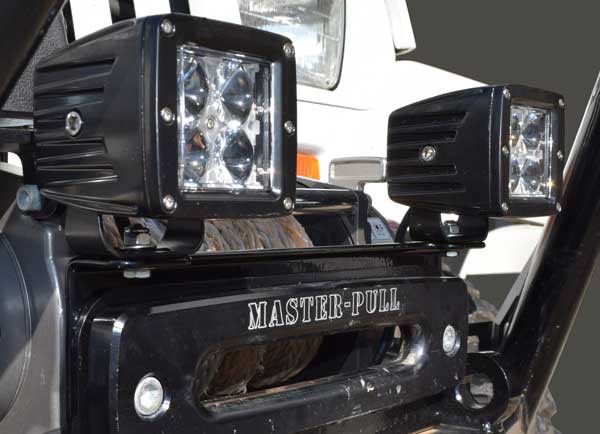

Our Fairlead LED mount is a terrific place to mount your LED light bar or two smaller LEDs, so you can light up the night while out on the trail. This is a simple part, but it can save an incredible amount of time and precious space on your Jeep or trail rig. The fairlead bolt pattern matches all standard fairleads, and can be used with most 10 inch  LED light bars. These are designed to be used with a hawse style fairlead, roller type fairleads can cause interference.  This part comes unfinished,  you will need to paint or powder coat to your desired finish.

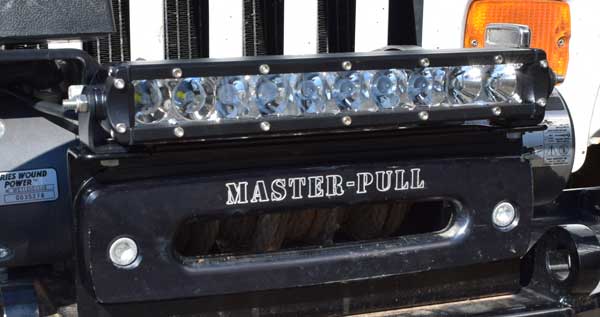

  Can be used with most 10 inch  LED light bar

  Can be used with two individual smaller lights

  10 from center of bolt hole to center of bolt hole for mounting to the fairlead, ½ diameter bolt holes

  10 ¼ from center of bolt hole to center of bolt hole for mounting light bar or 2 lights, 5/16 diameter bolt hole.
