  • Driver Drop Narrow Lower Control Arm Mount
  • Passenger Drop Narrow Lower Control Arm Mount
  • Short Side Dana 60 Lower Control Arm Mount
  • Short Tube Control Arm Bracket
  • Short Side Control Arm Mount
1 of 5

Barnes 4WD

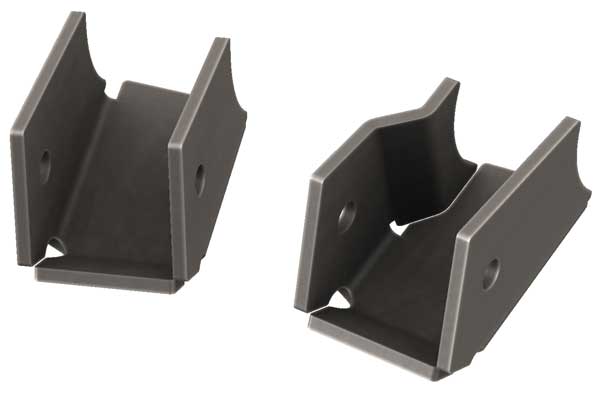

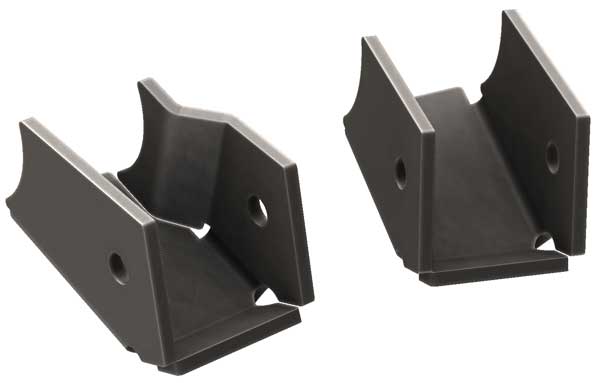

Dana 60 Narrow Lower Control Arm Bracket Kit

B4WK12514
Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Axle Drop

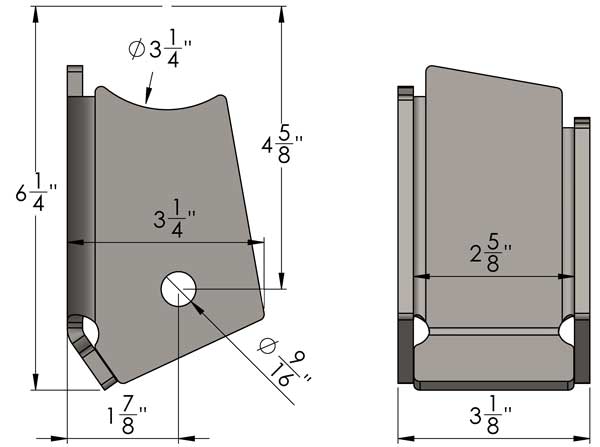

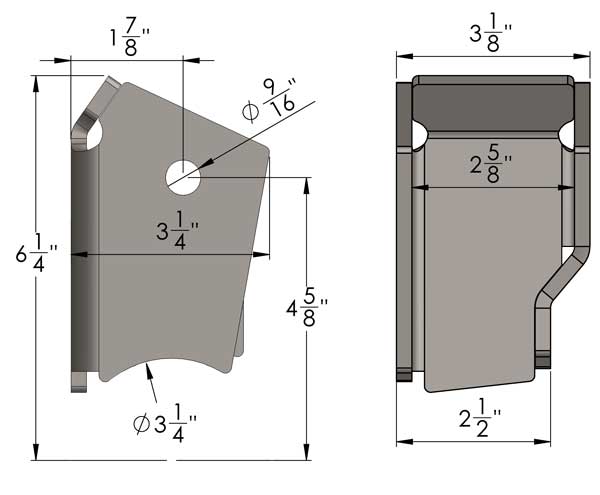

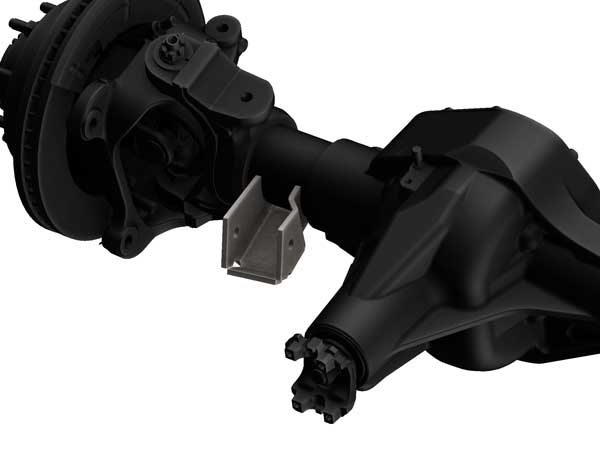

If you are building a suspension with a Dana 60 axle, attaching a lower control arm bracket to the short side tube for your 4 link or 3 link suspension can be a challenge, fortunately we have the solution.  We designed this bracket to use the common 2-5/8 inch suspension joint mounting width and 9/16 inch bolt hole, while only needing 2-1/2 inches of axle tube length to attach the bracket.  Each bracket has a built in 10° angle to help align the lower control arms to your frame rails.  This bracket is CNC cut and formed from 1/4 inch thick steel.  You will receive 1 offset bracket for the short side tube and 1 standard bracket for the long side.
