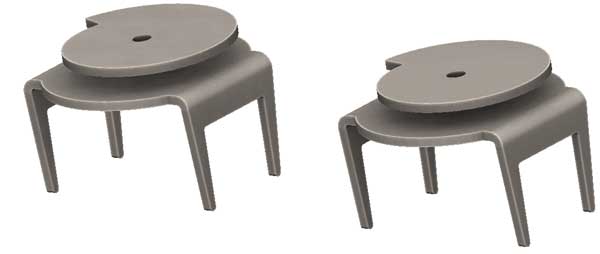

• Centered Frame Coil Spring Mount

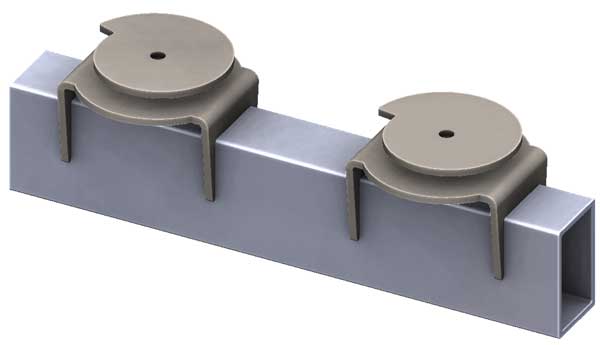

  • COIL SPRING CENTERED INSTALLED

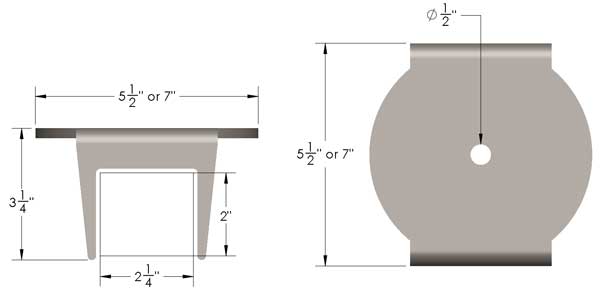

  • CENTERED COIL DIMENSIONS

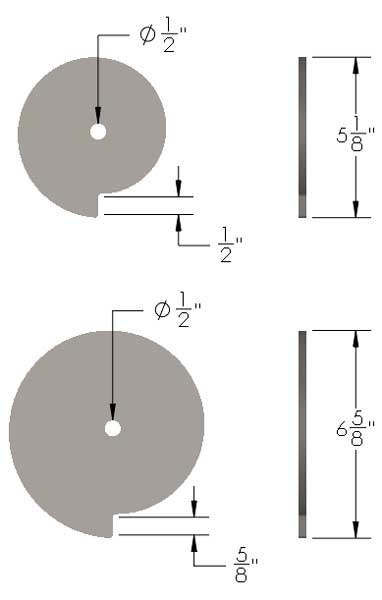

  • TOP RETAINER PLATE DIMENSIONS
1 4

Barnes 4WD

Coil Spring Bucket, Centered Frame

B4WK1107-1
$39.03 USD
$39.03 USD
Sale Sold out
Coil Spring Diameter
Add To Wishlist

Our centered frame coil spring bucket is a great platform to attach your coil spring to your frame. These coil spring buckets are made from one piece A-572 US Steel plate for unmatched strength. We offer them in 5.5 and 7 coil spring diameters. Each kit comes with two coil buckets and two retainer plates.
