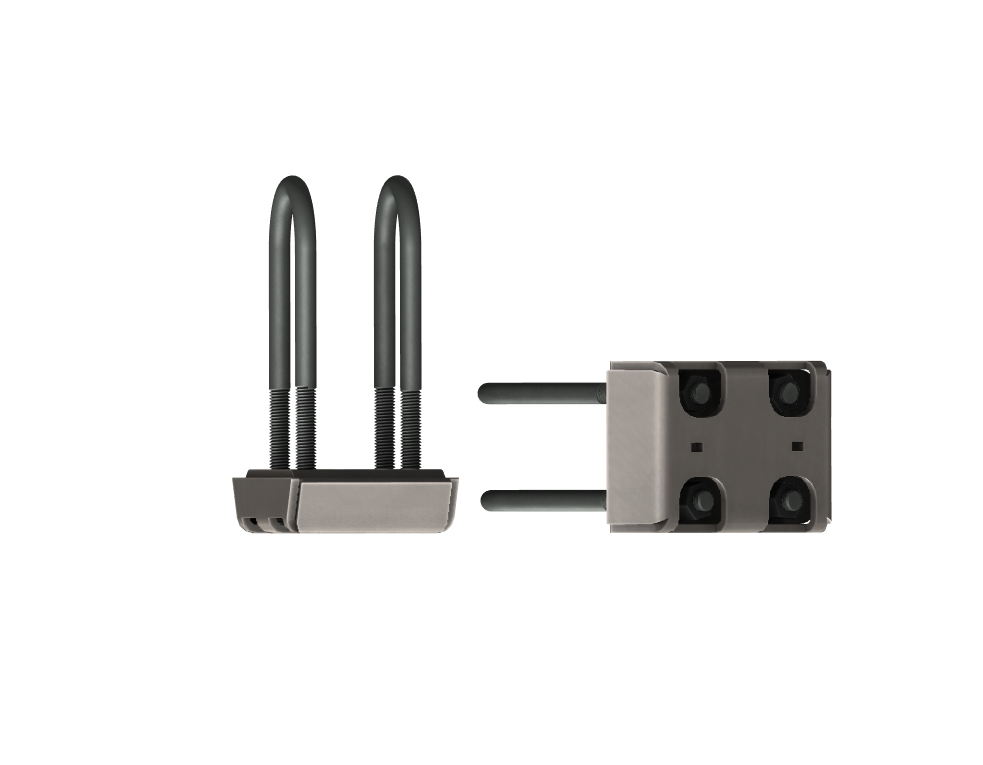

  • U bolts and U Bolt plates are not included.

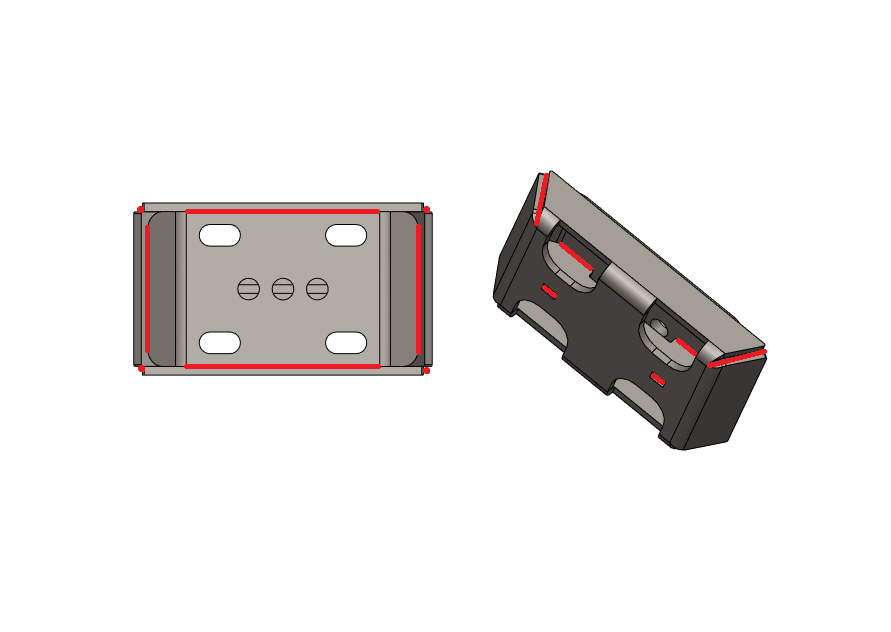

  • Recommended weld path.
1 of 3

Barnes 4wd

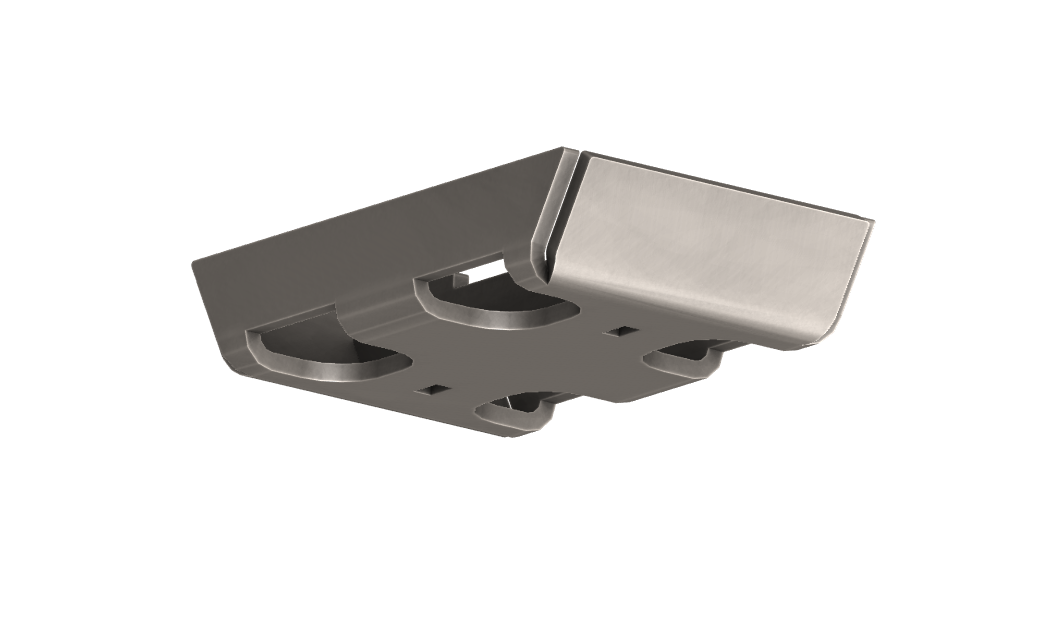

Anti-Wrap Spring Under U Bolt Skid Plate System

Regular price $47.22 USD
Regular price Sale price $47.22 USD
Sale Sold out
Add To Wishlist

While running anti wrap leaf spring mounts under the axle, U bolt plates and U bolts get damaged and hung on obstacles off road. To solve this issue a skid plate can be welded to the U bolt plate protecting the U bolt components and providing a smooth surface.  This design integrates a main skid body and internal brace that will need to be welded to both the U bolt plate and skid plate. The U bolt plate will be a tight fit and minor hand fitting is expected to get the plate to seat within the skid system.


Compatible with our U bolt plates for 2 1/2 wide Leaf Springs, that range from 2 3/4-3 5/8 axle tube.

These are sold in pairs.
