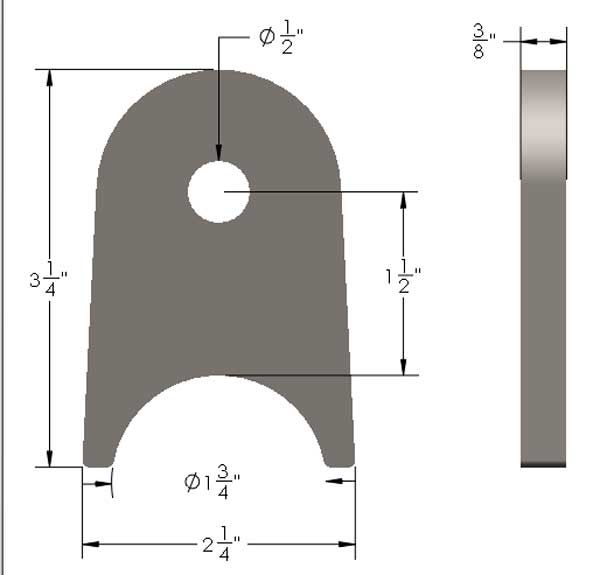

  • Short Tab Dimesions

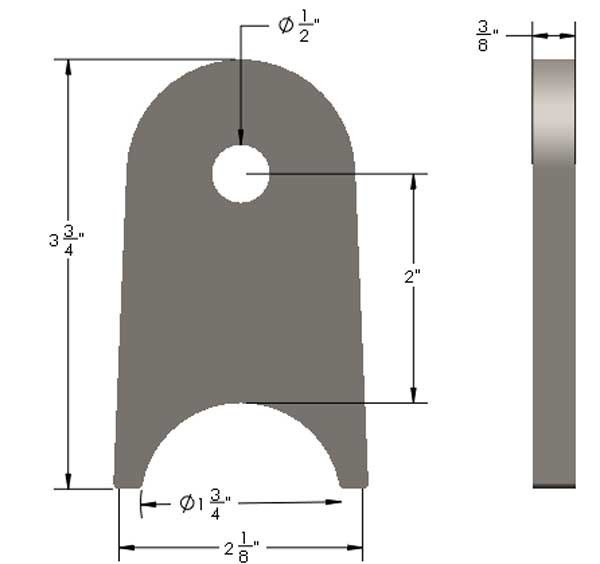

  • Medium Tab Dimensions

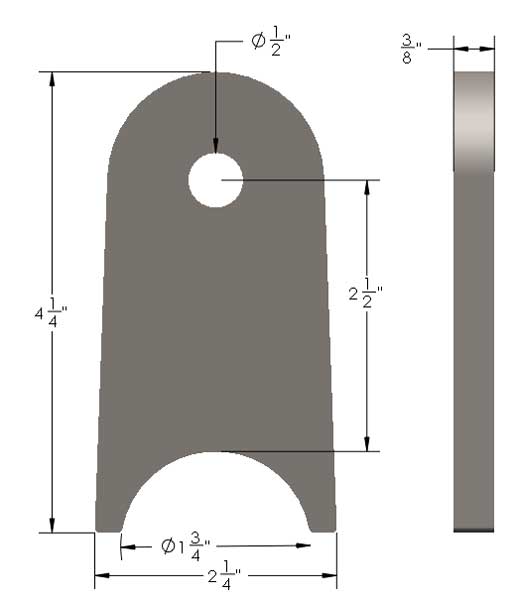

  • Long Tab Dimensions
1 of 4

Barnes 4WD

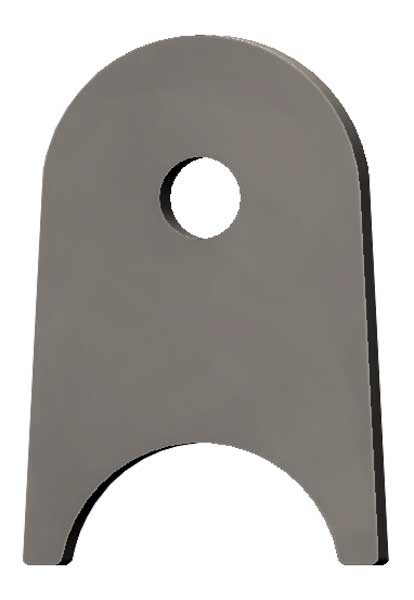

3/8" Thick 1 3/4" Tube Link Tab

Regular price $3.53 USD
Regular price Sale price $3.53 USD
Sale Sold out
Add To Wishlist

These tube link tabs are cut to fit a 1 ¾" tube but can be easily modified to fit other common sizes in a matter of minutes. These tabs are 3/8 inch thick steel and have a 1/2 inch bolt hole. We offer three different lengths so that you can mount your joints in a neutral position to maximize axle articulation. Long tabs are 2-1/2 inches from bolt hole to the tube, medium are 2 inches from bolt hole to the tube and short are 1-1/2 inches from bolt hole to the tube. Sold individually.
