Barnes 4WD

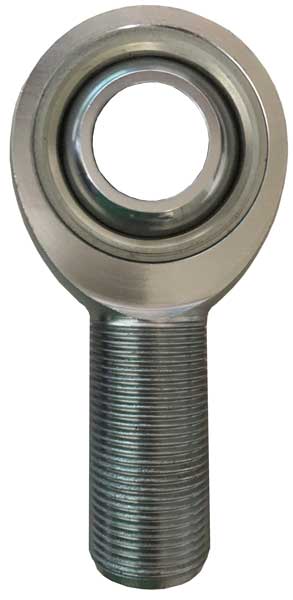

3/4"-3/4" 3-Piece Precision Heat Treated Chromoly Teflon and Kevlar Lined Right Hand Heim

JMX12T
Regular price $17.20 USD
Regular price Sale price $17.20 USD
Sale Sold out
Add To Wishlist
If you are looking for a long lasting precision chromoly rod end, this is the one for you.  This heim joint features a tough PTFE (Teflon) liner that is reinforced with Kevlar fibers for increased longevity over nylon lined heim joints.

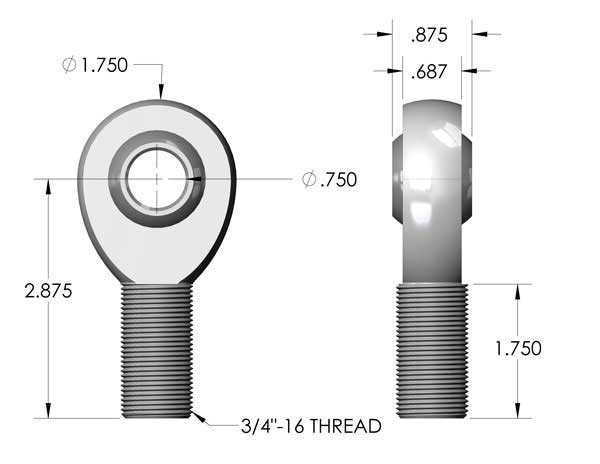

Threaded Shank
  •   3/4"-16
Bore
  • 3/4"
Static Radial Load
  • 28,081 lbs.
Ball
  • 52100 Bearing Steel
  • Precision Ground
  • Hard Chrome Plated
Race
  • 4130 Chromoly Steel
  • Heat Treated
  • PTF Lined
  • Zinc Plated
Body
  • 4130 Chromoly Steel
  • Heat Treated
  • Silver Zinc Plated
