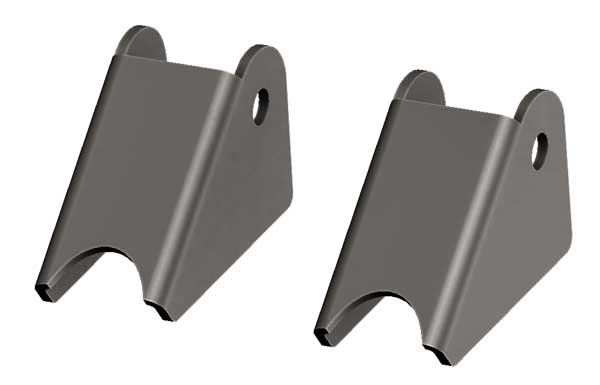

  • Radius Arm Brackets

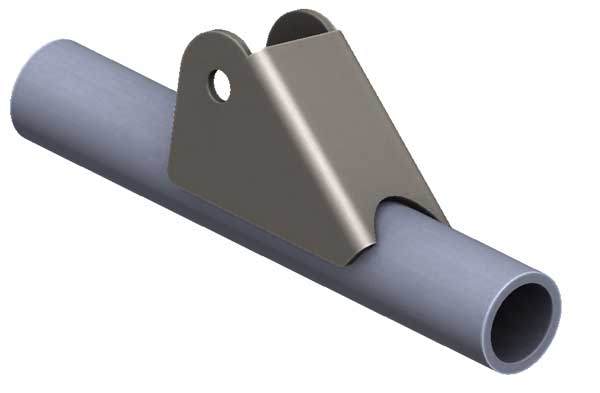

  • Radius Link Installed

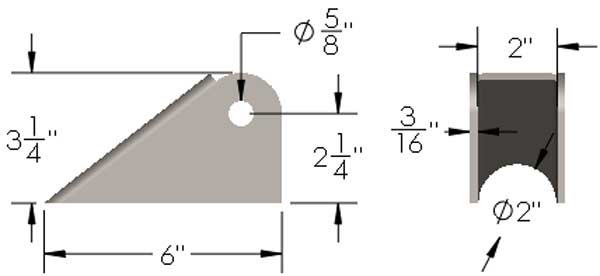

  • Radius Arm Mount Dimensions
1 of 3

Barnes 4WD

3/16" Thick Radius Arm Brackets

B4W188105XP
Regular price $20.59 USD
Regular price Sale price $20.59 USD
Sale Sold out
Add To Wishlist

Radius Arms are simple and they work! This bracket will allow you to mount a heim joint where the upper control arm on a radius arm suspension mounts to the lower arm. Having a heim joint in this location is critical to eliminating the inherent binding issues of a radius arm. The brackets are made to weld onto a lower control arm with a 2 inch outer diameter and give you a 2 inch inside mounting width with a 5/8 bolt hole. These are made from 3/16 100,000 min yield steel and are sold in pairs.
