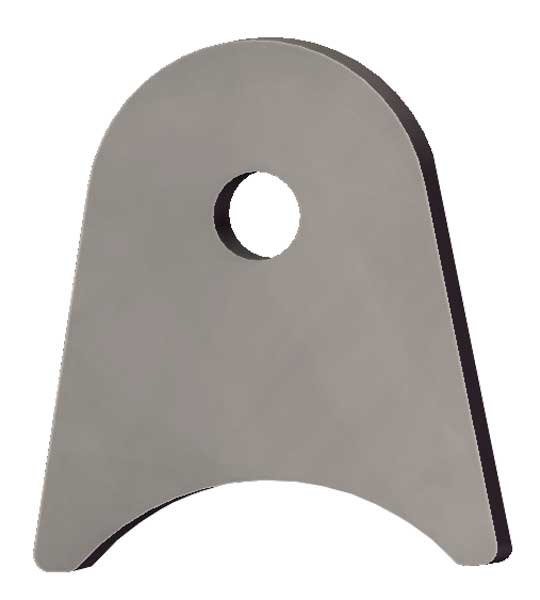

  • 3" Axle Link Tab

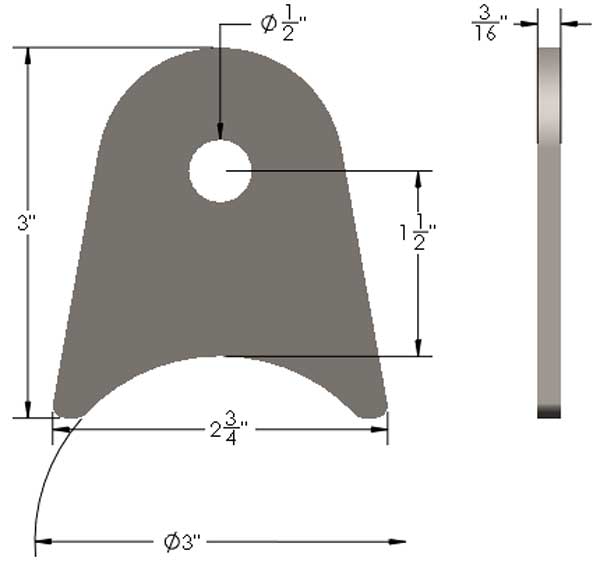

  • Axle Tab Small Dimensions

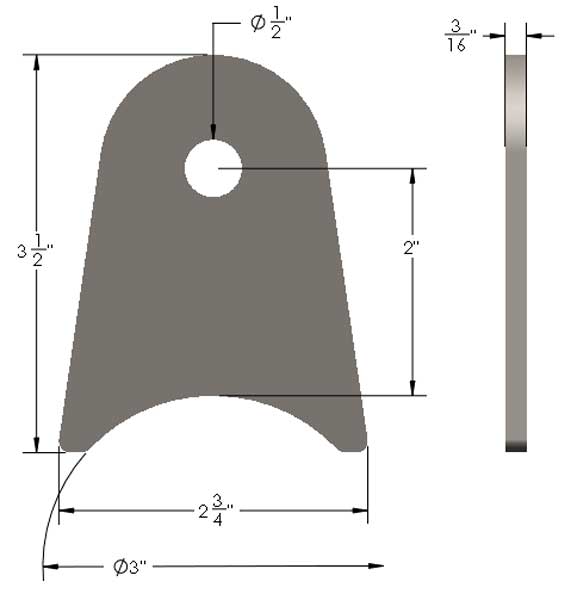

  • Axle Tab Medium Dimensions

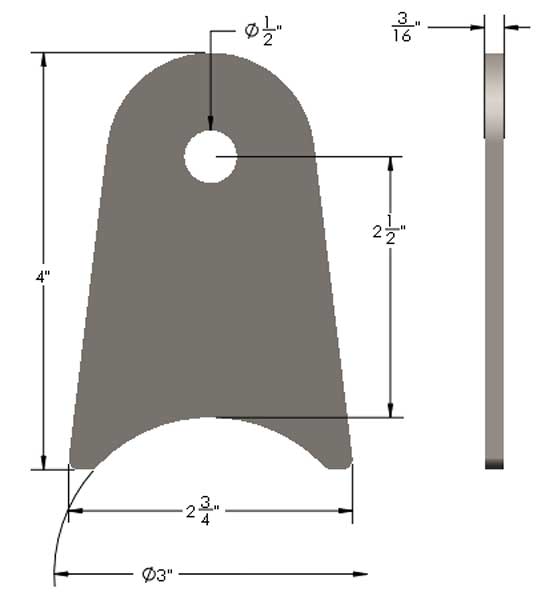

  • Axle Tab Long Dimensions
1 of 4

Barnes 4WD

3/16" Thick 3" Axle Link Tab

B4W188096X-L
Regular price $4.75 USD
Regular price Sale price $4.75 USD
Sale Sold out
Length

These axle link tabs are precut to fit a 3" tube but can be easily modified to fit other common sizes in a matter of minutes. These tabs are 3/16" 100,000 min yield steel and have a 0.505" bolt hole. We offer three different lengths so that you can mount your joints in a neutral position to maximize axle articulation. Long tabs are 2 1/2" from bolt hole to the tube, medium are 2" from bolt hole to the tube and the short are 1 1/2" from bolt hole to the tube.  Sold Individually.
