Barnes 4WD

2005-Up Superduty Dana 60 Front Radius Arm Swap Kit

B4WK12584
Regular price $715.33 USD
Regular price Sale price $715.33 USD
Sale Sold out
DOM Tubing Options
Add To Wishlist

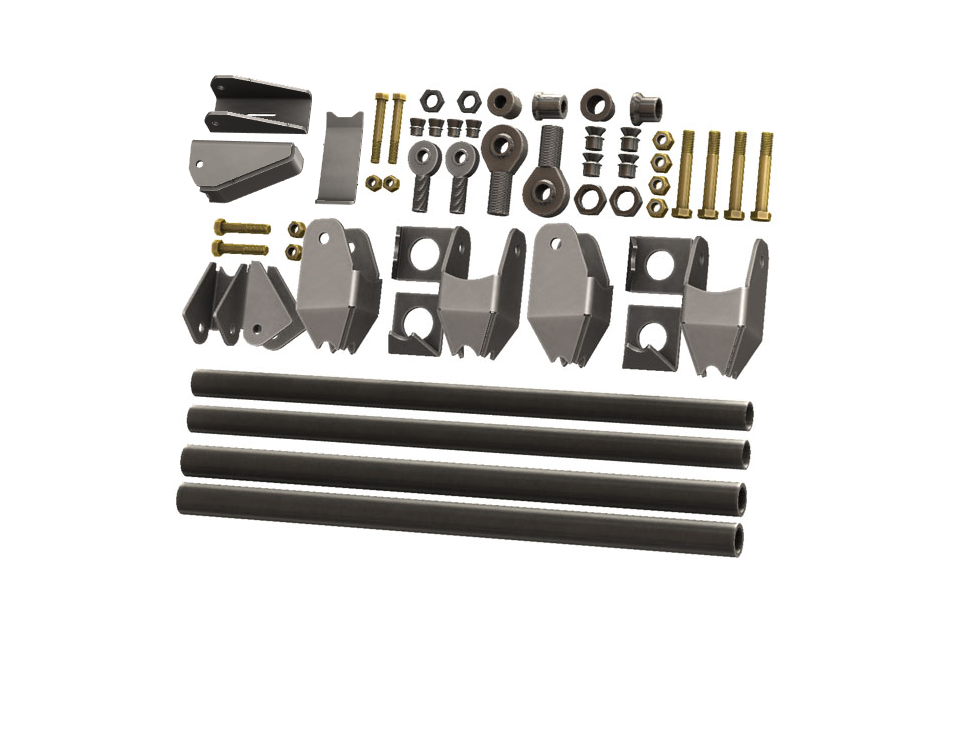

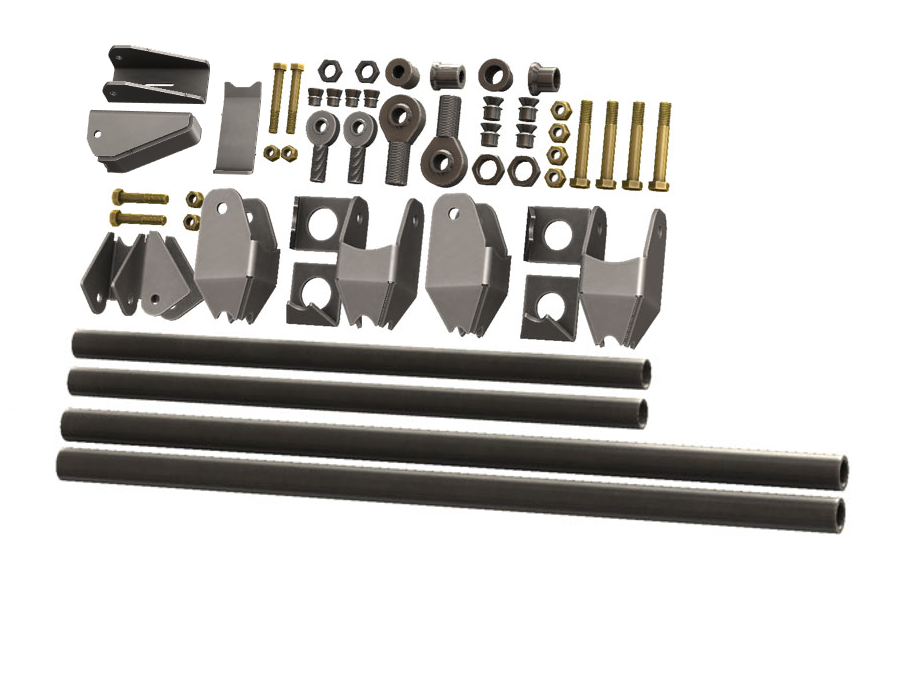

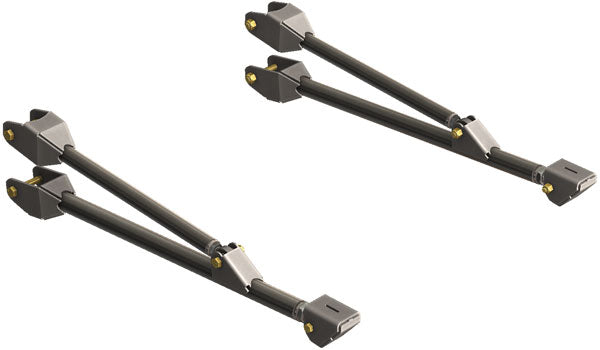

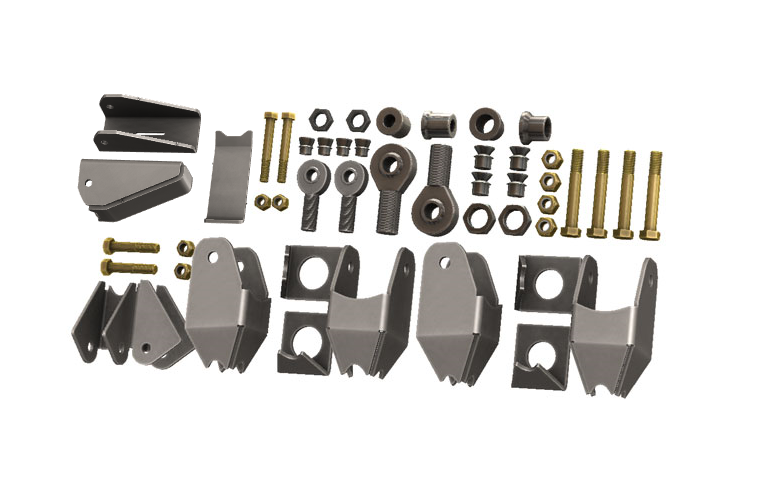

Putting a 2005-up Ford Superduty Dana 60 front axle under your vehicle? Using the factory bushing mounts on the Superduty, this kit will make swapping the axle into your vehicle a breeze. This kits includes a pair of radius arm brackets that will accept 2-inch outer diameter tubing for the lower links and a pair of radius arm brackets that will accept 1-3/4 inch outer diameter tubing for the upper links. Frame link brackets with a mounting width of 2-5/8 will allow you to attach to any frame you see fit, accepting our 1-1/4 heim joint with high misalignment spacers. The radius arm brackets will accept our 7/8 heims with high misalignment spacers and also give you plenty of welding surface area to weld the bracket onto the lower links. This kit will include all the brackets, joints, and hardware you will need. Simply add the 2-inch OD x .25-inch tubing for the lower links in lengths of 3-feet or 4-feet and 1.75-inch OD x .125-inch tubing for the upper links at 3-feet long to get the complete kit. Depending on your application, the tubing will be cut to the length that is necessary for your build. The brackets and tubing will be shipped bare and will need to be painted or powder coated after installation, and welding is required for installation.
No reviews
