2005-2022 Superduty Dana 60 Front Parallel 4 Link Swap Kit

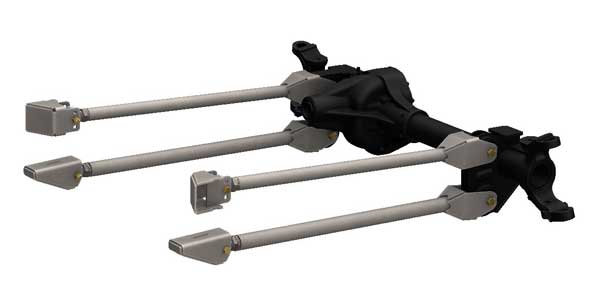

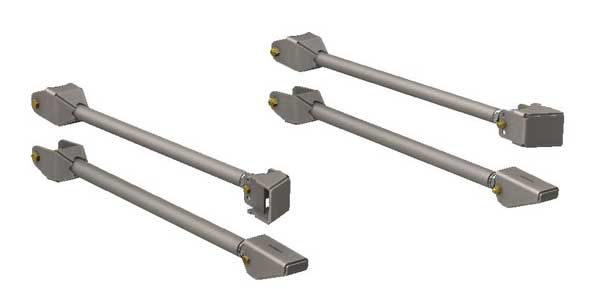

Putting a 2005-2022 Ford Superduty Dana 60 front axle under your vehicle? Using the factory bushing mounts on the Superduty, this kit will make swapping the axle into your vehicle a breeze. This kits includes a pair of radius arm brackets that will accept 2-inch outer diameter tubing for the lower links and a pair of radius arm brackets that will accept 1-3/4 inch outer diameter tubing for the upper links. Frame link brackets with a mounting width of 2-5/8 will allow you to attach to any frame you see fit. Joint options include 1 1/4" heat treated 2 piece heim joints, 1 1/4" rebuildable enduro joints, or 1 1/4" forged chromoly poly joint. This kit will include all the brackets, joints, and hardware you will need. Simply choose your suspension joint style that fits your application. Tubing is sold separate.

ALL KITS Include:

• 4 RH 1 1/4"-12 Jam Nut
• 2 RH 1 1/4 Heavy Wall Hex Tube Insert 1.5ID 2OD
• 2 RH Tube insert 1.5ID 1.75OD
• 2 Adjustable Link Mount Bracket 0 Deg 9/16BH
• 2 Frame link mount Bracket 2 5/8 MW 9/16BH
• 4 60 radius arm brackets 2 at 2"OD and 2 at 1.75"OD
• 4 9/16 x 4 Grade Eight Bolt And Nylock Nut
• 2 18mm bolts (included with B4WK12447)
• 2 18mm locknuts (included with B4WK12447)

Included Per Unique Selection

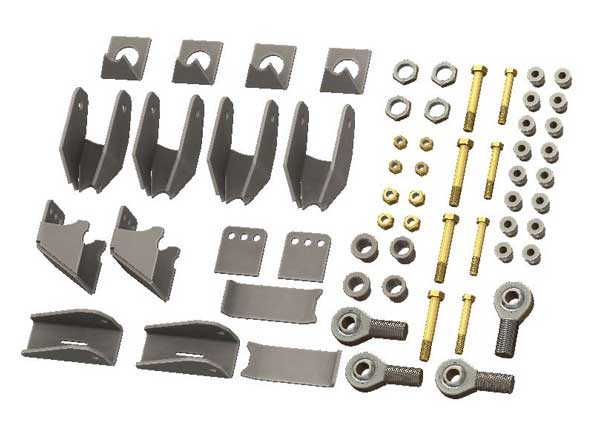

      Heim Kit

• 4 RH 1 1/4"-12x1" Heims
• 4 1 to 9/16 high misalignment spacer 2 5/8 mounting width

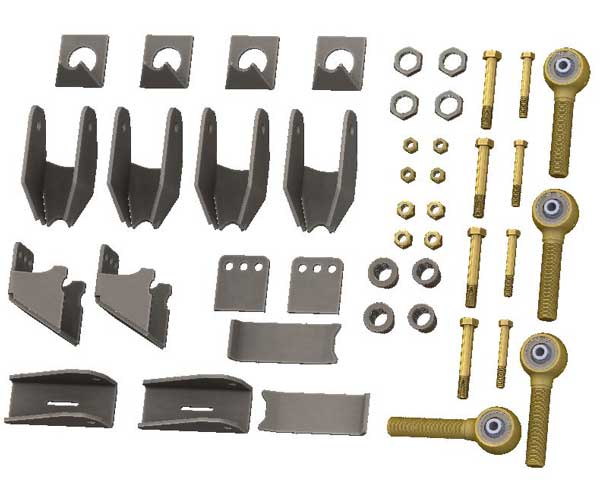

      Enduro Kit

• 4 RH 1 1/4 enduro

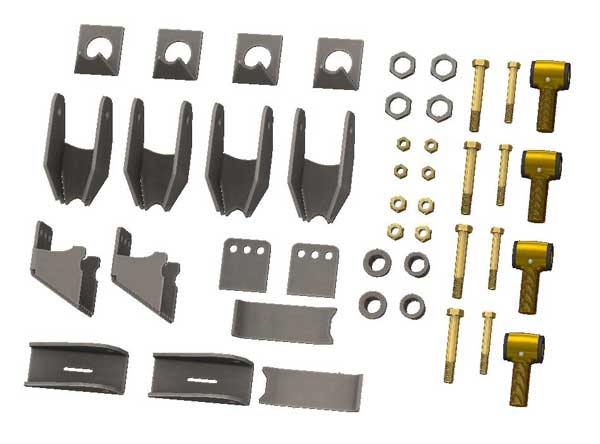

      Poly Joint Kit

• 4 RH 1 1/4"-12 Poly Joint 9/16" BH 2 5/8" MW
