Barnes 4WD
1 1/4" Heim Joint Parallel 4 Link Suspension DIY Kit
B4WK12592
Regular price
$709.36 USD
Regular price
Sale price
$709.36 USD
Unit price
per
Couldn't load pickup availability

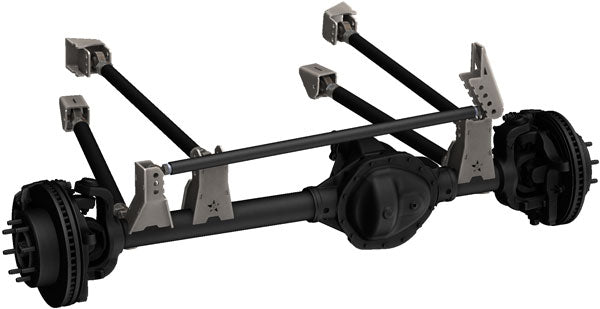

This is a complete, high quality parallel 4 link suspension kit with all the parts you need to install a parallel four link suspension on your rig at home. All the parts in our parallel four link kit are made to stand up to the abuse that rock crawlers and trail rigs see and then some. This kit will make a total 5 links, 4 links for your upper and lower control arms and 1 link for your panhard bar. This kit includes our heat treat chromoly 1.25 heim joints, these are high quality heim joints with great longevity.
Read our 4 Link Suspension Install Tips.

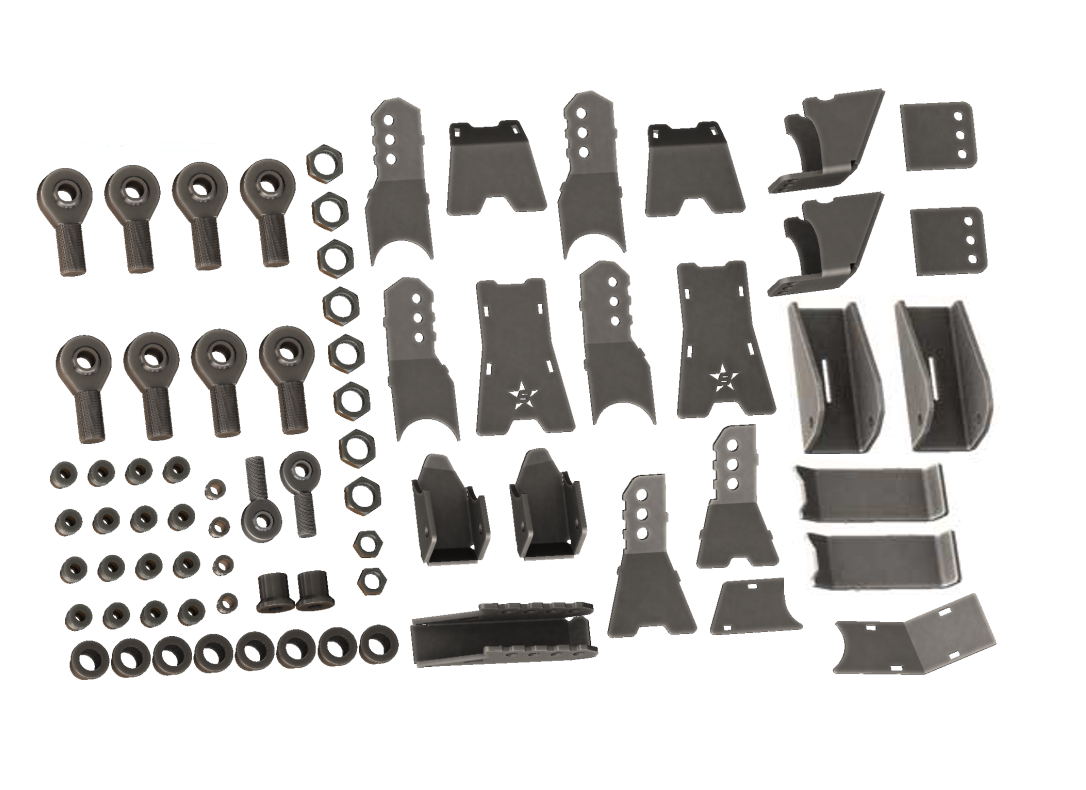

The kit includes:
- 2 Axle Link Mounts 10 Deg Standard
- 1 Frame Link Mounts
- 2 Adjustable Inner Frame Link Mount 0 Deg
- 2 Link Tower
- 1 Outside Frame Panhard / Trackbar Mounting Bracket
- 1 Offset Axle Panhard Bracket
- 1 Chromoly 3/4" - 16 X 3/4" Heim RH
- 1 Chromoly 3/4" - 16 X 3/4" Heim LH
- 4 High Misalignment Spacers - 3/4" to 5/8"
- 1 3/4" - 16 Jam Nut RH
- 1 3/4" - 16 Jam Nut LH
- 1 Tube Insert (3/4"-16) 1" ID Tube RH
- 1 Tube Insert (3/4"-16) 1" ID Tube LH
- 4 Chromoly 1 1/4"- 12 Heim RH
- 4 Chromoly 1 1/4"- 12 Hiem LH
- 4 1 1/4"-12 Jam Nuts LH
- 4 1 1/4"-12 Jam Nuts RH
- 2 Heavy Wall Tube Insert (1-1/4"-12) 1 1/2" ID Tube LH
- 2 Heavy Wall Tube Insert (1-1/4"-12) 1 1/2" ID Tube RH
- 2 Standard Tube Insert LH
- 2 Standard Tube Insert RH
- 16 High Misalignment Spacers 1-9/16
This is great for the do it yourself fabricators looking do their own parallel 4 link system.
