Barnes 4WD

Enduro Joint 2 Inch Mounting Width 7/16" Bolt Hole 7/8-14 Right Hand Thread

Regular price $44.23 USD
Regular price Sale price $44.23 USD
Sale Sold out
Add To Wishlist

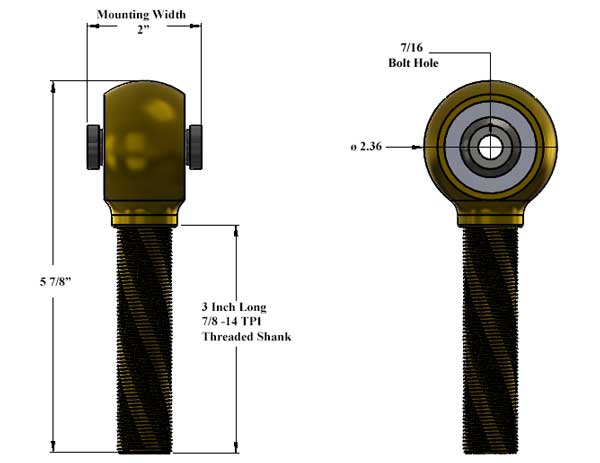

When Barnes 4WD designed the rebuild-able Enduro suspension joint we combined the best materials, the best manufacturing processes and the best steel and polyurethane treatments available all in one joint. The body of the Enduro Joint is Forged 4130 heat treated Chromoly steel. We did not try to cut any corners by making a short threaded shank like a heim joint instead we give you 3 inches of 7/8 -14 threaded shank. That is over one inch longer than 7/8 heims on the market. The Enduro Joint s ball is made from 4130 chromoly steel and incorporates the high misalignment spacers all into one piece of steel. The spherical bearing is hard chrome plated to provide an ultra smooth surface and has proven to provide excellent corrosion protection. The mounting width of the Enduro Joint is 2 inches and accepts a 7/16 bolt with 28° of total misalignment (14° in either direction). The cups that the spherical bearing rides on are an 88 durometer polyurethane that ensures maximum life, no squeaks like heim joints and they help to dampen axle vibrations felt through the chassis. The body of the joint is gold zinc plated to ensure that the Enduro Joint looks great for the life of the joint. Ensure joint is properly greased before installation.
