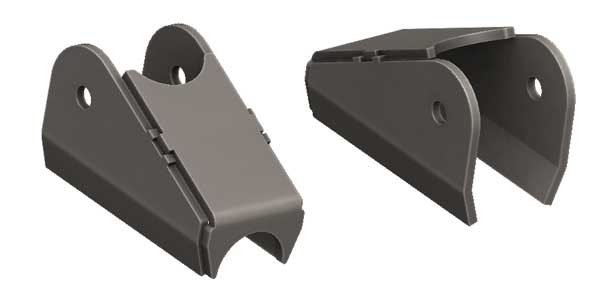

  • 2-5/8 Radius Arm Bracket
  • 2.625 Radius Arm Bracket

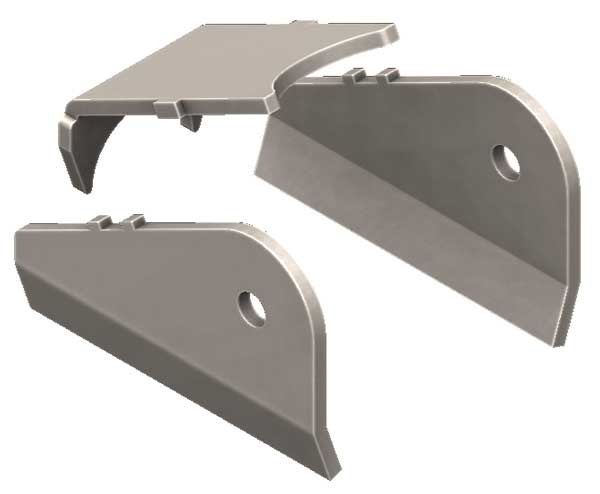

  • Radius Arm Bracket Assembly
1 of 3

Barnes 4wd

2 5/8 Radius Arm Brackets

B4WK1147
Regular price $37.30 USD
Regular price Sale price $37.30 USD
Sale Sold out
Add To Wishlist

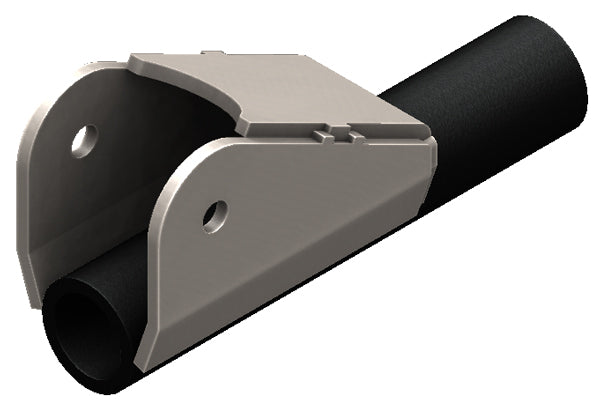

Radius Arms are simple and they work! This bracket will allow you to mount a heim joint where the upper control arm on a radius arm suspension mounts to the lower arm. Having a heim joint in this location is critical to eliminating the inherent binding issues of a radius arm. The brackets are made to weld onto a lower control arm with a 2 inch outer diameter, and give you a 2 5/8 inch inside mounting width with a 9/16 bolt hole. These are made from 1/4 steel, sold in pairs, and welding is required.
