Barnes 4WD
1 1/4"-1" 3-Piece Precision Heat Treated Chromoly Teflon and Kevlar Lined Right Hand Heim
JMX16T
Regular price
$47.20 USD
Regular price
Sale price
$47.20 USD
Unit price
per
Couldn't load pickup availability
If you are looking for a long lasting precision chromoly rod end, this is the one for you. This heim joint features a tough PTFE (Teflon) liner that is reinforced with Kevlar fibers for increased longevity over nylon lined heim joints.
- 1 1/4"-12
Bore
- 1"
- 76,200 lbs.
- 52100 Bearing Steel
- Precision Ground
- Hard Chrome Plated
Race
- 4130 Chromoly Steel
- Heat Treated
- PTFE Lined
- Zinc Plated
Body
- 4130 Chromoly Steel
- Heat Treated
- Silver Zinc Plated

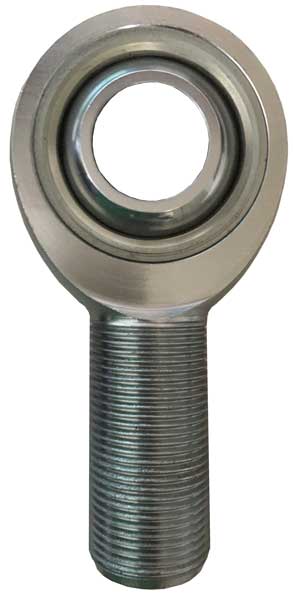

![JMX16T 3-Piece Heim](http://barnes4wd.com/cdn/shop/products/3-piece-heim_1445x.jpg?v=1652171138)

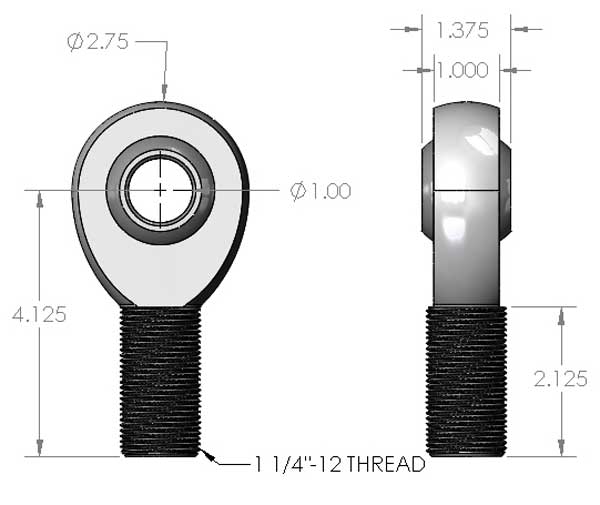

![JMX16T 3-Piece Heim Dimension](http://barnes4wd.com/cdn/shop/products/125x1-heim-dimensions_20-_20copy_1445x.jpg?v=1652171139)
