Barnes 4WD

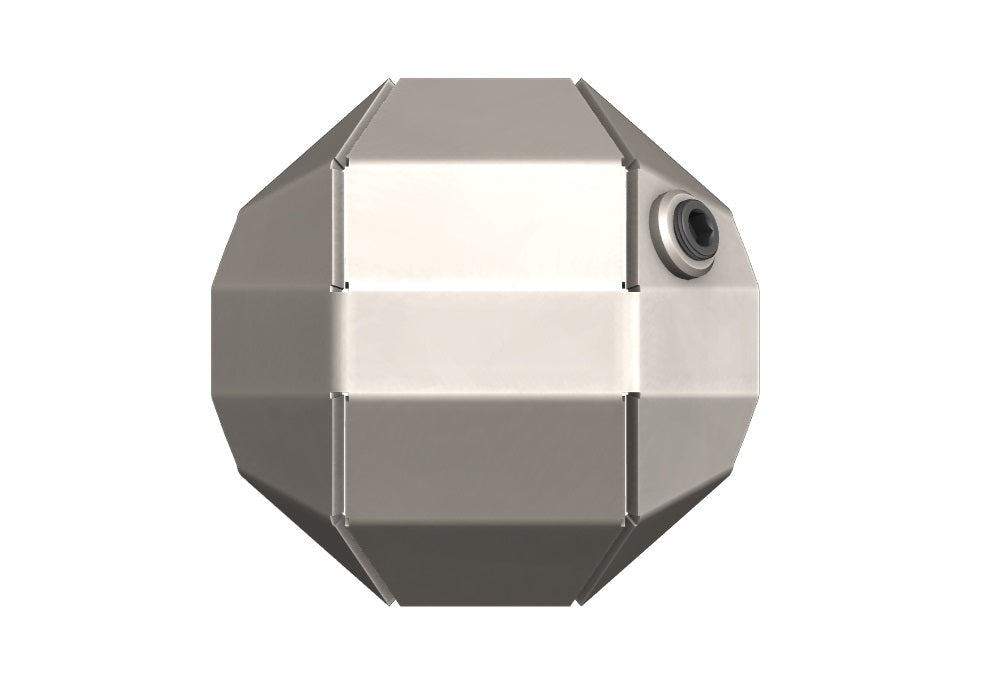

Toyota Pick Up Heavy Duty Differential Cover Kit

B4WK1012
Regular price $51.25 USD
Regular price Sale price $51.25 USD
Sale Sold out
Add To Wishlist

  • 1/4" thick construction.

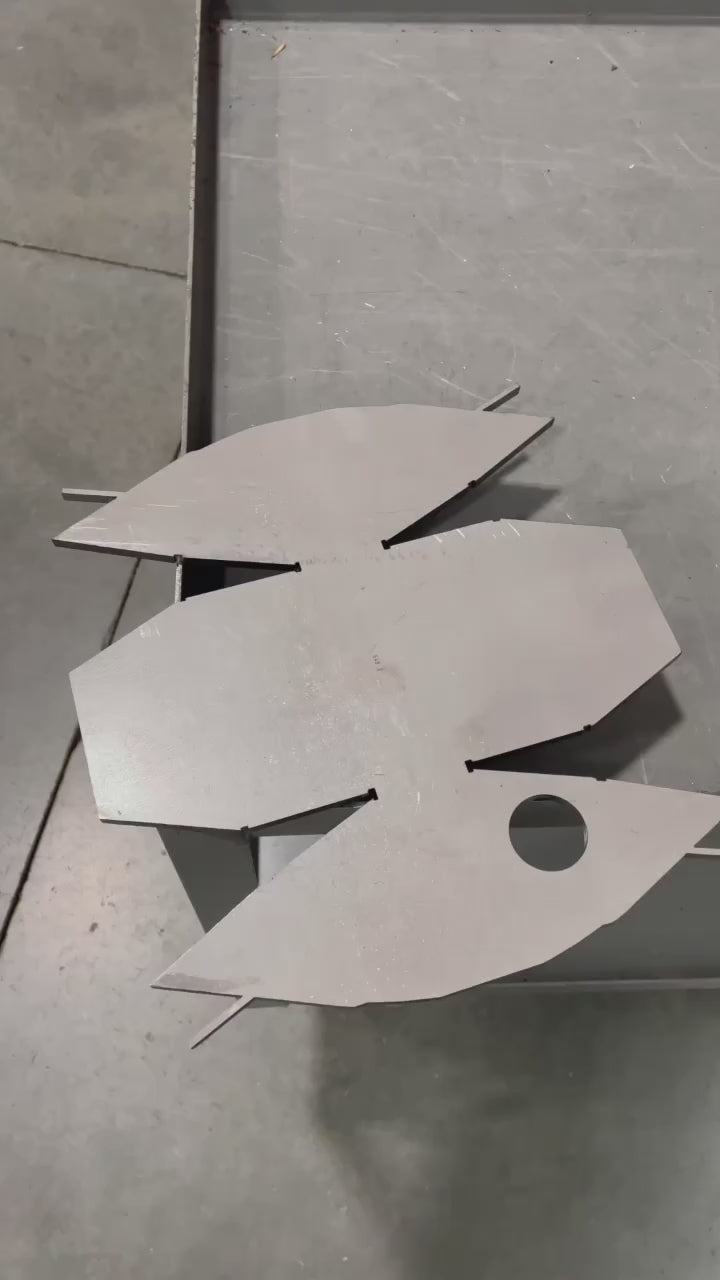

  • Pre bent and ready to weld together and to the axle.
  • Thicker than the factory cover for a final repair.
This cover will fit.

1994 and older Toyota Trucks
1995-2014 Tacoma with locking rear differential (E-locker) ONLY!
2001 and older 4 Runners

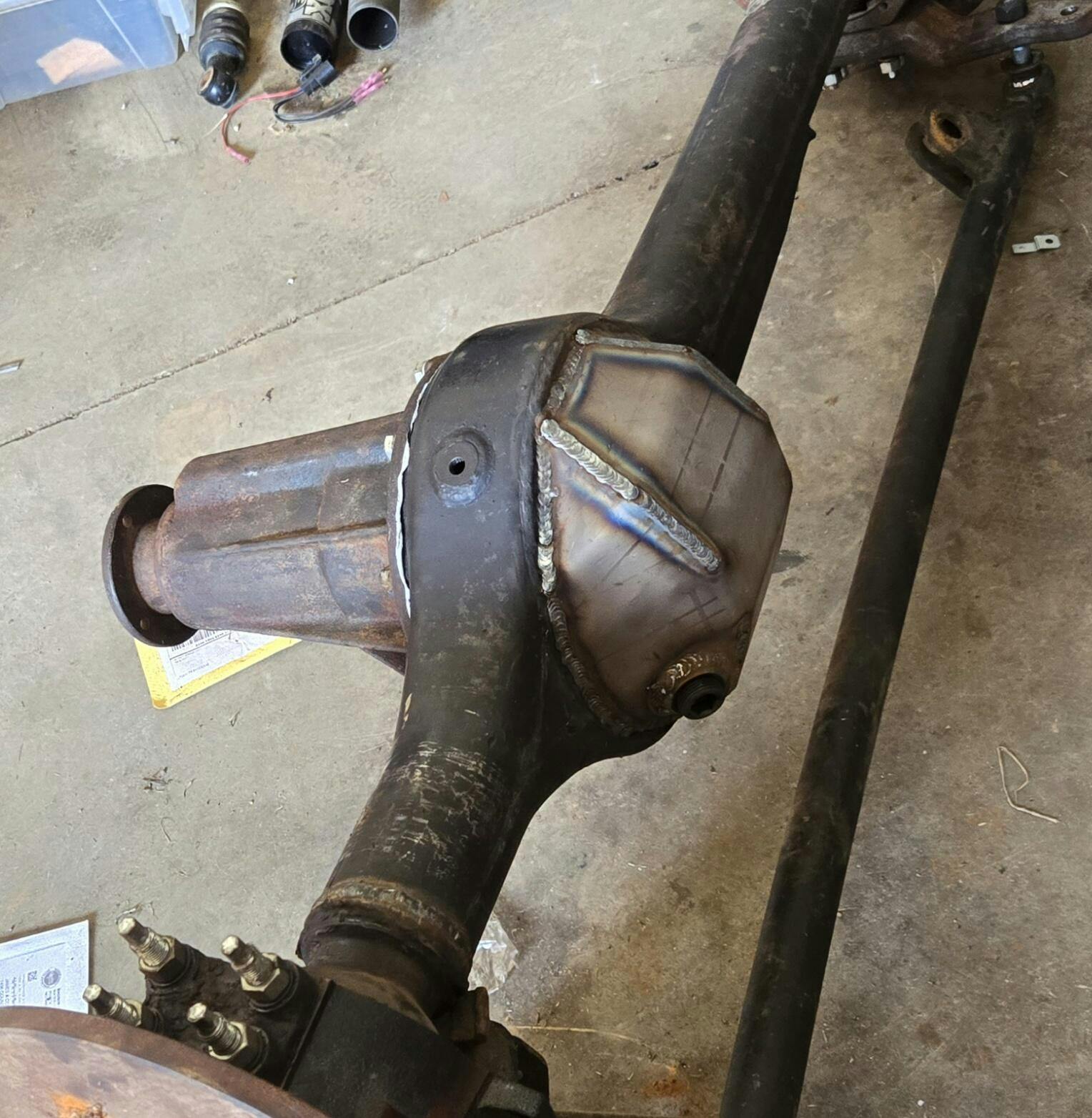

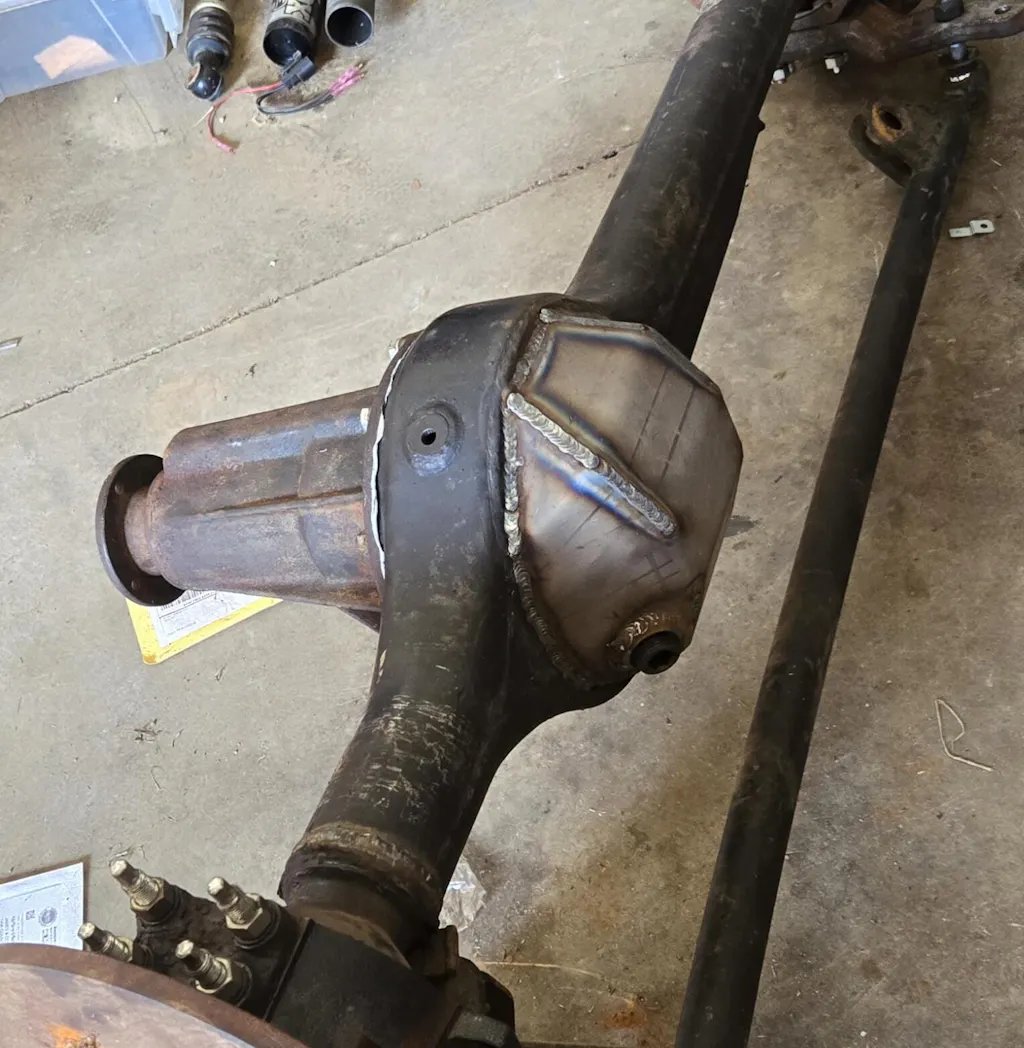

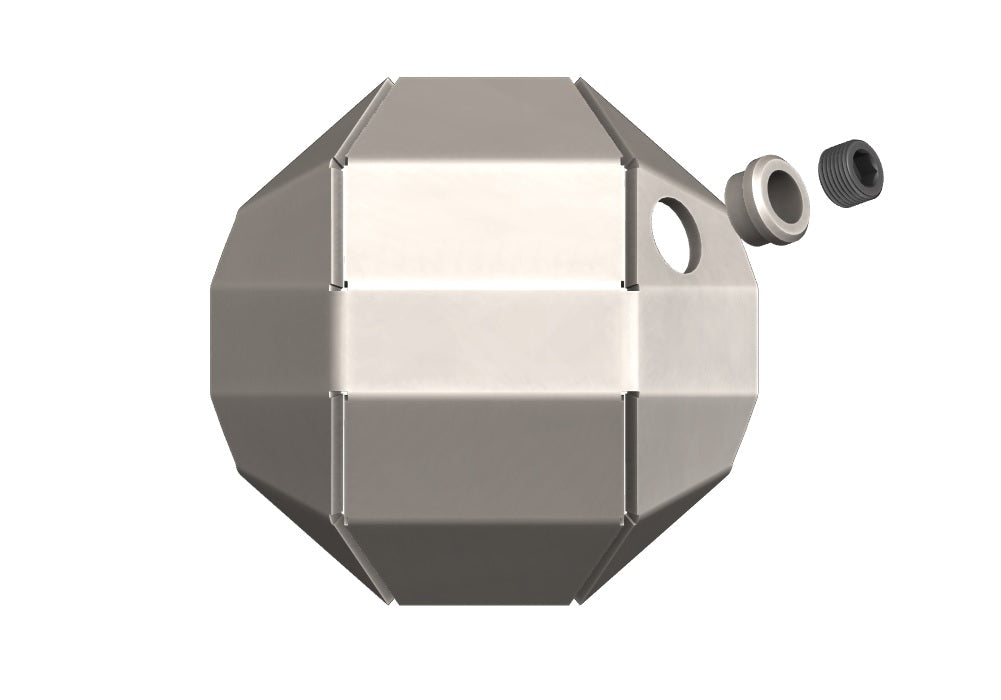

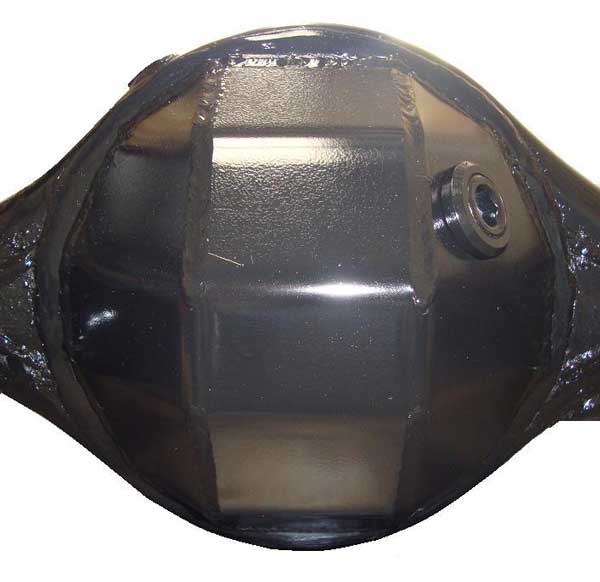

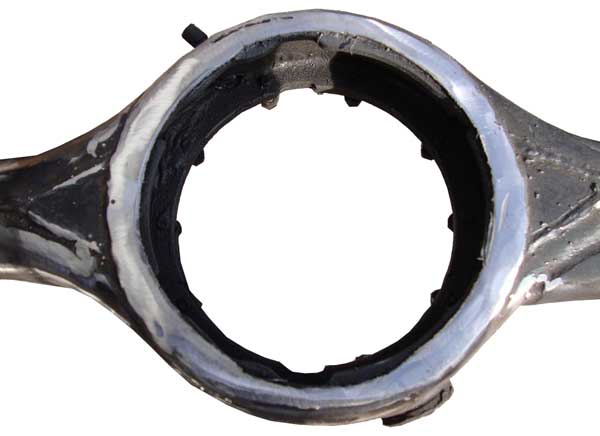

Barnes 4WD is proud to introduce the first Toyota Differential Cover Kit that offers complete protection for your third member, maximizes clearance and increases fluid capacity. This cover is not your typical cap that you just weld over the thin stock housing. With our cover you completely remove the factory cap (a quick job with a cut off wheel) and weld a laser cut and bent ¼" plate steel cover in its place. This is a little more work but the payoff is worth it for the total coverage and increased oil capacity. Fill plug uses a 9/16 allen wrench.  This is also the most economical fix for a rusted leaking Toyota rear axle.




Pipe joint compound is recommended on the fill plug
This cover will not fit any of the Tundras!
This cover will not fit a Tacoma that does not have a locking rear differential!
