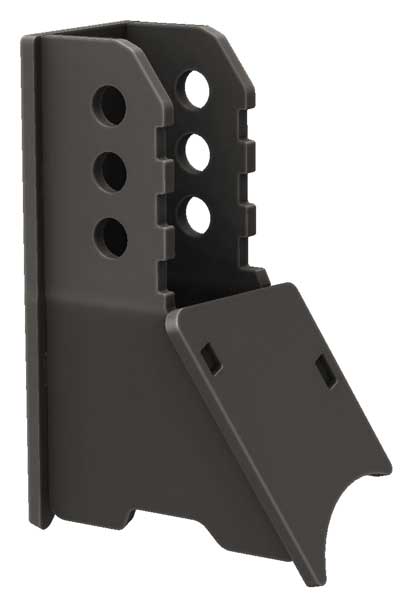

  • Offset Axle Panhard Bracket

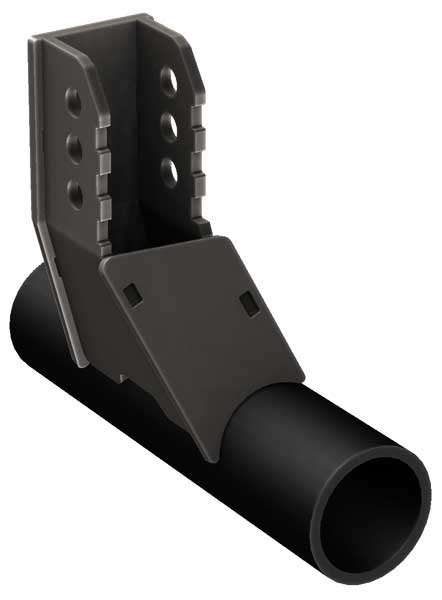

  • Offset Trackbar Mount Installed

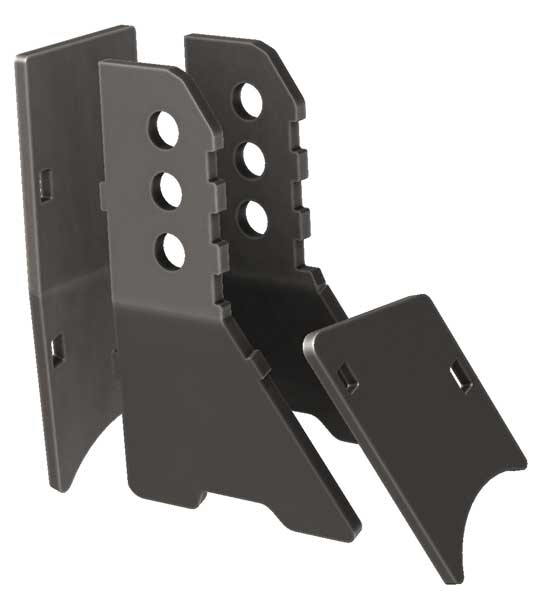

  • Offset DIY Track Bar Mount

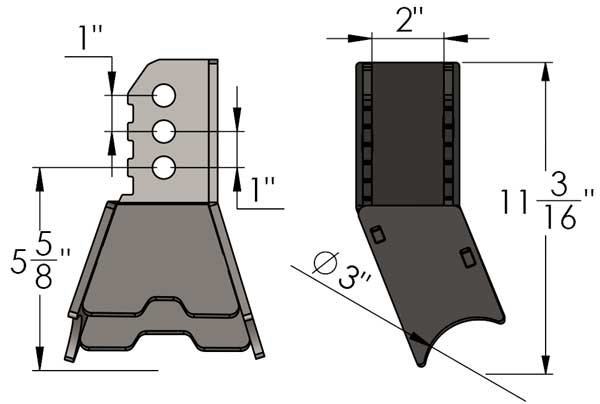

  • DIY Offset Panhard Dimensions
1 of 4

Barnes 4wd

Offset Axle Panhard Bracket 1-4"

B4WK1050
Regular price $34.00 USD
Regular price Sale price $34.00 USD
Sale Sold out

This is our idea of the correct way to make an Offset Panhard / Trackbar bracket, it seems like 3 out of 4 need to be on the leading edge of the axle for clearance issues. The center of the heim will be 5-5/8, 6-5/8 or 7-5/8 inches vertically from the center of the axle tube and 3.5" forward of the center of the axle tube. They are cut to fit a 3" axle tube so they can be modified to fit any tube diameter, fabricated from 1/4" plate, and bent perfectly so you don't have to play with the grinder to make them fit! They have two drain holes built in. These are setup for a 2" ID and have 5/8 inch bolt holes so just about any heim will fit with minimal misalignment.
