Jeep JK Superduty Dana 60 Axle Truss Swap Kit For 3 Link Front Suspension

Regular price $292.35 USD
Regular price Sale price $292.35 USD
Sale Sold out
Dana 60 Axle Year Model
Add To Wishlist

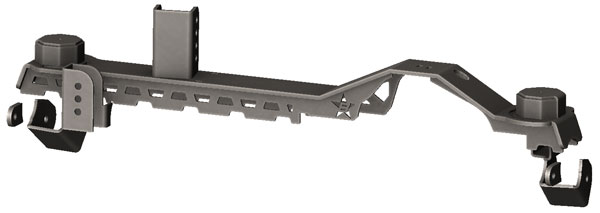

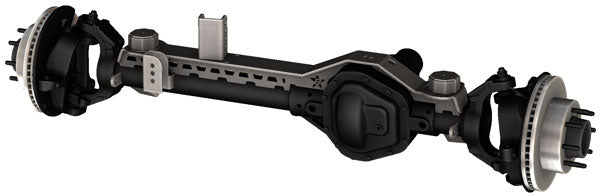

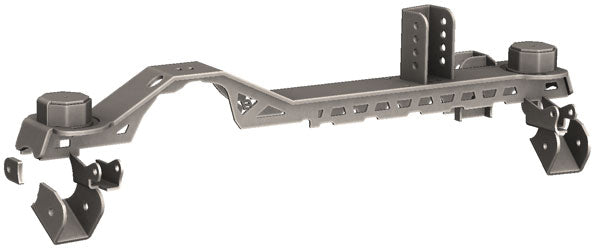

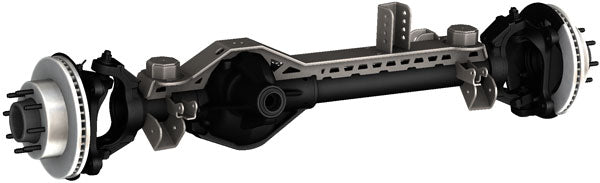

We designed our Jeep JK Superduty Dana 60 swap kit to make it easy for you to put a Dana 60 from a 1999-2004, or 2005-up Ford Superduty in the front of your 2007-2018 Jeep JKU or JK.  This kit is designed to work with a Dana 60 driver drop front axle out of a 1999-2004, or 2005-Present Ford F-250 or F-350.  All parts of this kit are keyed to the truss, making installation a breeze.  Simply center the truss, set the angle, and all other components will locate off from the truss.  This kit includes all of the needed suspension brackets to install a Dana 60 under your Jeep JK, welding is required.  This kit is designed to be used in conjunction with a custom 3 link front suspension, the upper link mount features a 2-5/8 inch mounting width and a 9/16 inch bolt hole.

Installation Notes:
A 3 link front suspension is required to use this kit
Trimming of the casting on the drivers side and the inner C's is required
The lug pattern on the Superduty Dana 60 is 8x170 this will not match the factory lug pattern on your Jeep.
Custom lower control arms and a custom track bar is required.
A new frame side track bar bracket is included.
Brake lines, driveshaft modifications, vent tube, and steering linkages are the responsibility of the end user.
