Barnes 4WD
Jeep JK Sterling 10.25 or 10.5 One Ton Axle Truss Swap Kit
B4WK12587
Regular price
$261.25 USD
Regular price
Sale price
$261.25 USD
Unit price
per
Couldn't load pickup availability
We designed our Jeep JK Sterling 10.25 and 10.5 swap kit to make it easy for you to put a one ton Ford Sterling axle in the back of your 2007-2018 Jeep JKU or JK. This kit is designed to work with a Sterling 10.25 or 10.5 rear axle out of a Ford single rear wheel F250 or F350 pickup . All parts of this kit are keyed to the truss, making installation a breeze. Simply center the truss, set the angle, and all other components will locate off from the truss. This kit includes all of the needed suspension brackets to install a Sterling axle under your Jeep JK, welding is required.
All parts of truss are keyed to fit together, for ease of installation and minimal measuring!
![](https://cdn.shopify.com/s/files/1/0616/3752/5720/t/2/assets/TrackBar.jpg?v=1642498915)
Installation Notes:
-The lug pattern on the Sterling is 8x6.5 or 8x170mm this will not match the factory lug pattern on your Jeep.
-Brake lines, driveshaft, ABS, and vent tube modifications are the responsibility of the end user.
-The pinion on the Sterling will interfere with the fuel tank on the JK. The fuel tank will need to be relocated!

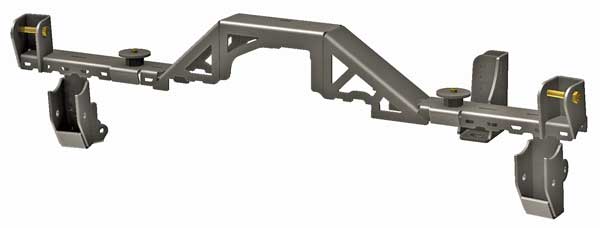

![Jeep JKU Sterling Swap Truss](http://barnes4wd.com/cdn/shop/products/jeep-jk-1-ton-sterling-truss_1445x.jpg?v=1652172024)

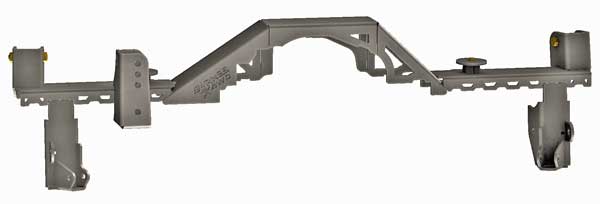

![Jeep Wrangler 1 Ton Rear Axle Truss](http://barnes4wd.com/cdn/shop/products/sterling-axle-jeep-jk-swap_1445x.jpg?v=1652172024)

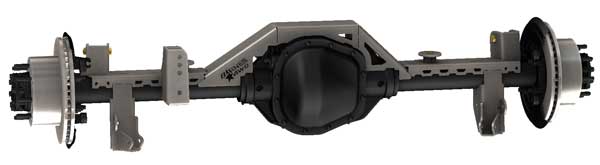

![JKU Rear 1 Ton Swap Kit](http://barnes4wd.com/cdn/shop/products/jeep-wrangler-sterling-swap-truss_1445x.jpg?v=1652172024)

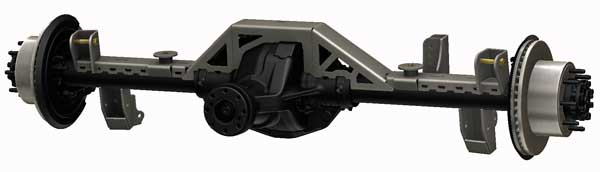

![Jeep JK Sterling 10.5, 10.25 Swap Truss](http://barnes4wd.com/cdn/shop/products/jk-sterling-1-ton-swap_1445x.jpg?v=1652172024)
