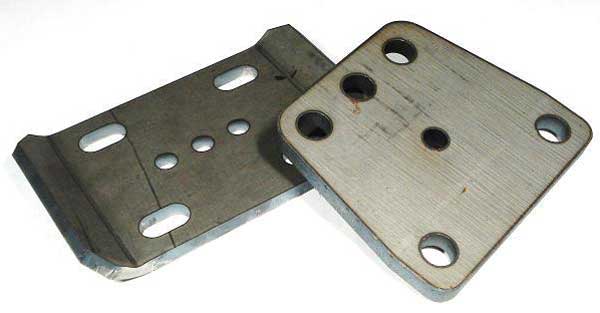

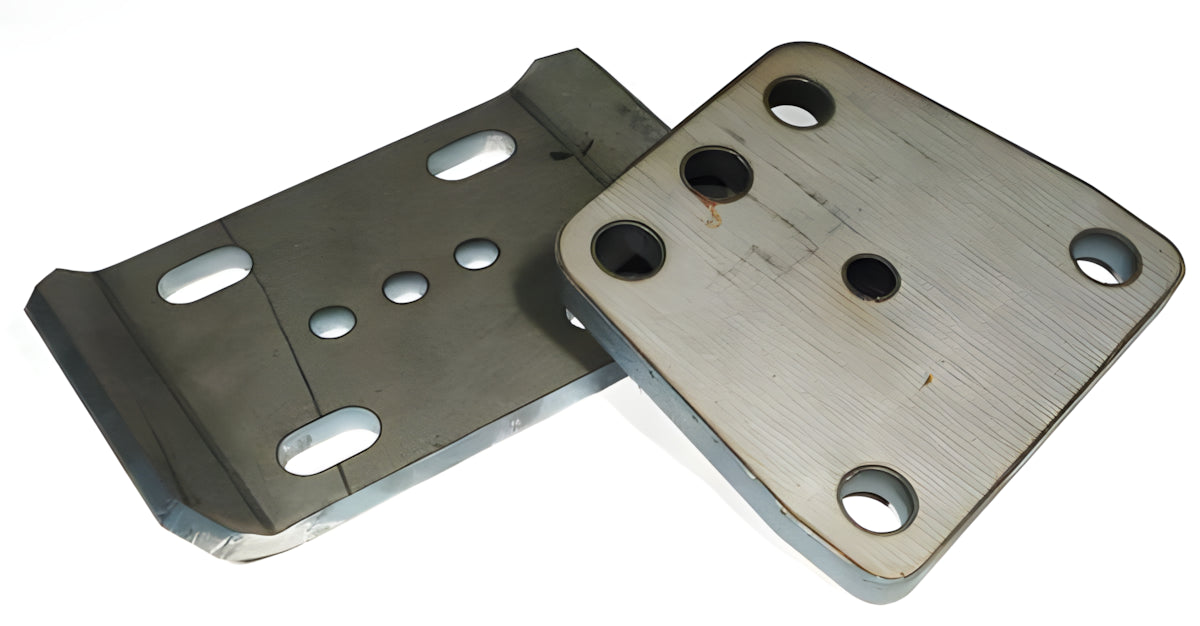

GM Dana 60 Kingpin U Bolt Plates

This is our Chevy front Dana 60 specific u-bolt plate. The passenger side plate is laser cut from 1/2" plate steel, the holes are drilled on one side to fit the tapped holes in the axle housing, the opposite side of the passenger side plate is made to fit a standard u-bolt. The drivers side plate is made from 3/8" plate and designed to use 2 standard u-bolts. These can be used on a new build, or make great replacements for your stock u-bolt plates on vehicles that came factory equipped with 2.5" wide springs (some came with 2.75" wide springs, so measure before ordering). Sold as a pair, includes one custom u-bolt plate for the passenger side and one standard u-bolt plate for the drivers side. Like all of our products, they are made in the USA from USA steel. These are made for 2 1/2" wide springs.

***Our U-bolts bolts have a torque spec of 150 foot pounds and should never be tightened with an impact gun.
