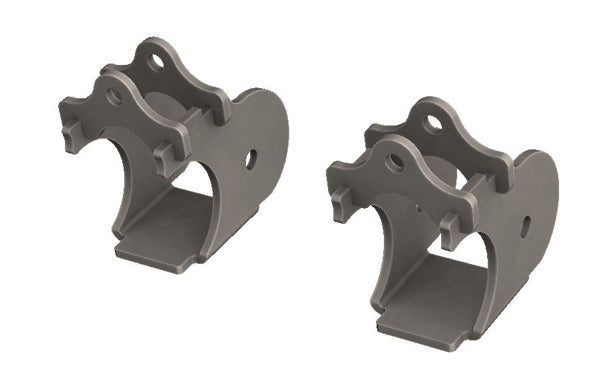

• Axle Link Mount Shock Combo

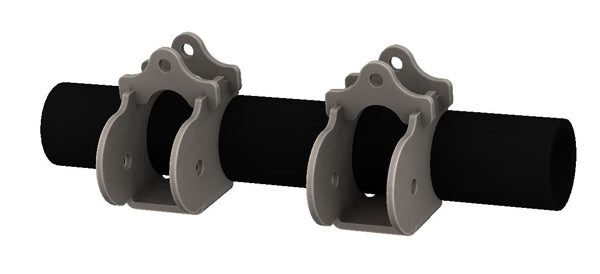

  • AXLE SHOCK INSTALLED

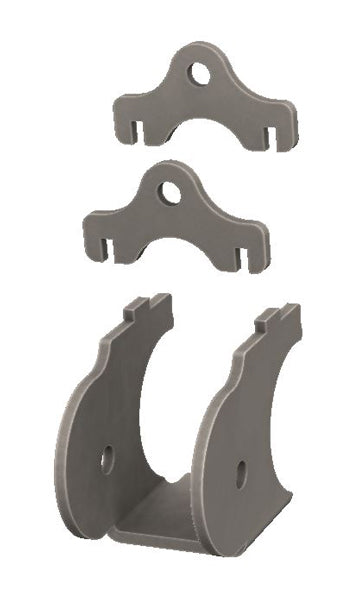

  • LINK COMBO EXPLODED

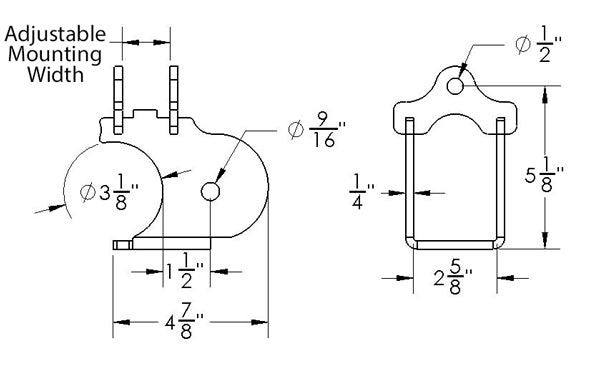

  • CONTROL ARM SHOCK MOUNT DIMENSIONS
  • CONTROL ARM MOUNT DIMENSIONS
1 5

Barnes 4WD

Axle Link Mount Shock Combo

B4WK1090-1
$38.01 USD
$38.01 USD
Sale Sold out
Mounting Configuration
Add To Wishlist
When we are building a rig more time than not we find ourselves asking Where are we going to put all this stuff ? So we set out to try to find a way to most efficiently package our lower control arm brackets and shock brackets and I think we hit the nail on the head! These are sold in pairs.
 Here are some of the benefits that we incorporated into the design
  • Minimal axle tube needed to mount a control arm and shock bracket
  •  Design keeps suspension joint as close to the axle as possible
  •  Bolt hole size 9/16
  •  The control arm bracket is made from one piece of steel to make it ultra strong

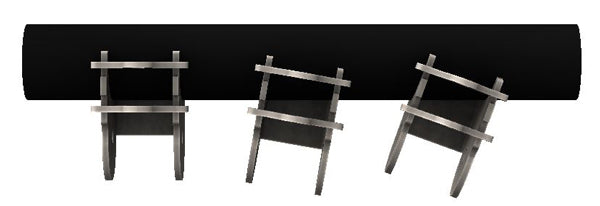

  • Shock brackets can be mounted centered of the axle or you can adjust it 1 if you do not want the shock directly over the axle
